Fillet Surface to Curve

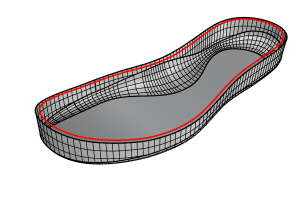

The FilletSrfCrv command creates a fillet surface between a surface and a curve.

Steps

1. Select a surface.

   The picking location decides the side to create the surface.

2. Select a curve near the surface.

Options

Radius: Move the slider to change the radius, or double-click on the slider to enter a value.

Range: Click a number button to change the range of the slider for smaller or larger adjustment.

Blend Type

• Arc: Creates a fillet surface with arc sections and tangent (G1) to the input surfaces.

• Deformable: Add more control points to the fillet sections for adjusting tangency and bulge.

• Deformable degree: Sets the degree of fillet sections from 3 to 5.
• Tangent: Moves the second points on both ends in the tangent direction.
• Bulge (For degree 4 and 5): Moves the point(s) in the middle to make the fillet sections sharper or flatter.
• G2 Blend: Creates a blend surface connecting to the input surfaces with curvature (G2) continuity.

Trim: Uses the output surface to trim the input surfaces when possible. History is supported when the Trim checkbox is disabled.

For more information, please refer to the Rhino documentation.
