Add Sketches

The Add Sketches command simplifies the insertion and alignment of reference images in the viewport to aid in precise modeling with RhinoArtisan.

Workflow:

  1. Reference Cube Appears: When the command is activated, a cube appears in the viewport.
  2. Image Input: In the command panel, the user can select three reference images for the Top, Front, and Side views.

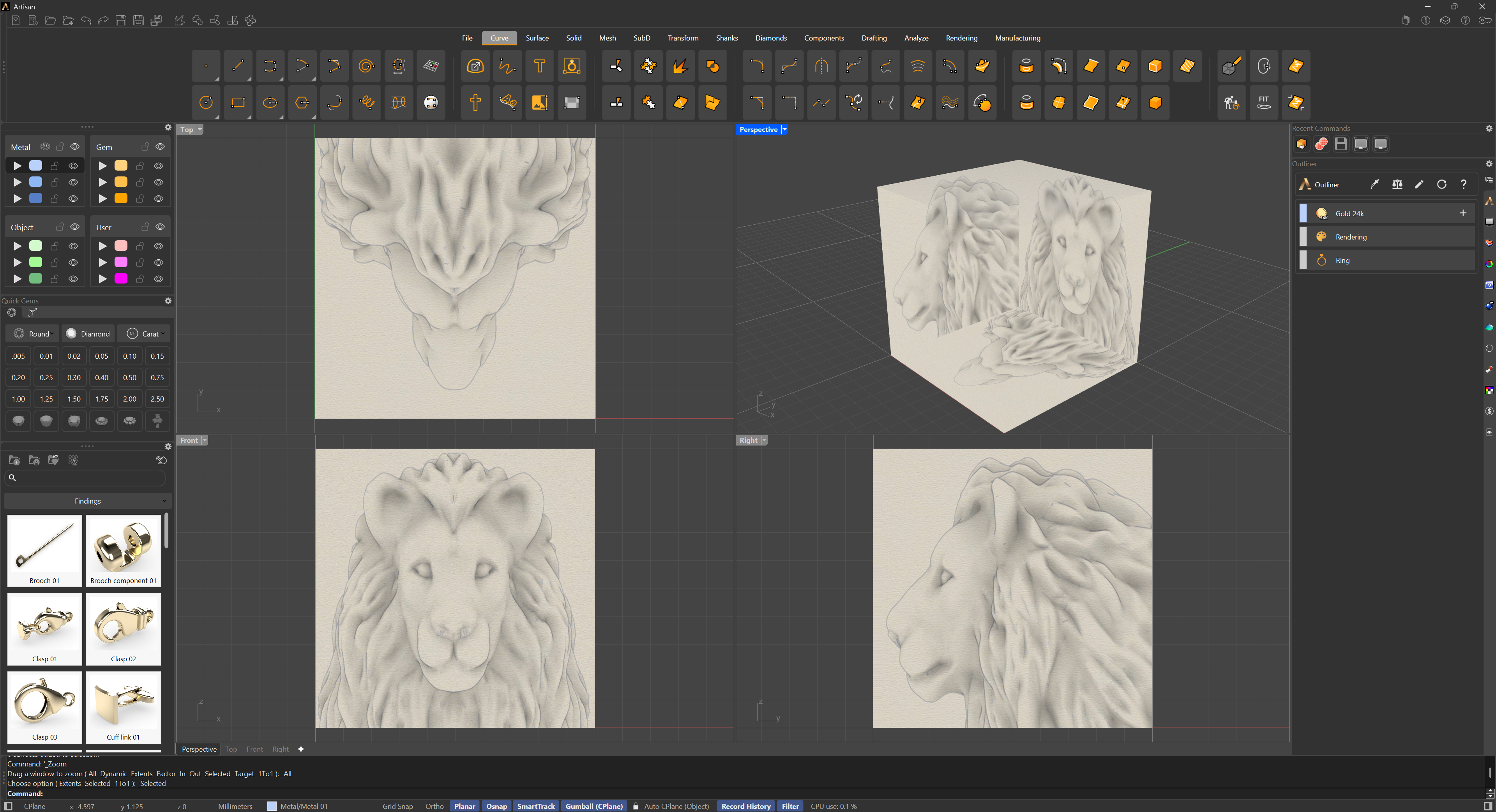

  3. Automatic Alignment: The images are automatically placed on the corresponding faces of the cube, aligned in 3D space.

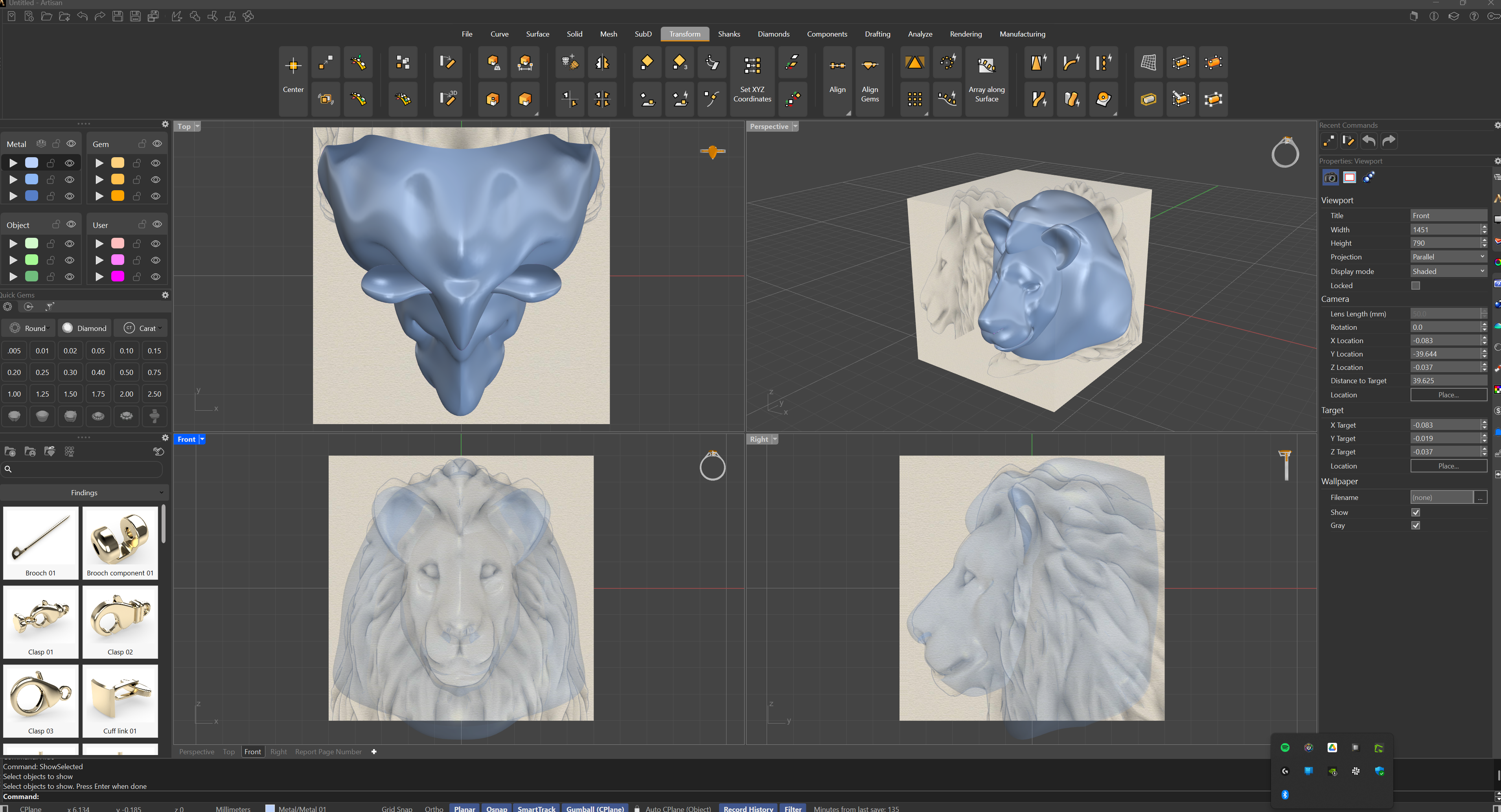

  4. Confirmation and Display: Once the command is confirmed, the cube becomes transparent, leaving only the images visible for reference.

Advantages:

Provides an intuitive system for organizing sketches in 3D space.
Ensures precise and automatic alignment of reference images.
The transparent cube avoids visual obstructions.
