MergeFaces

MergeFaces

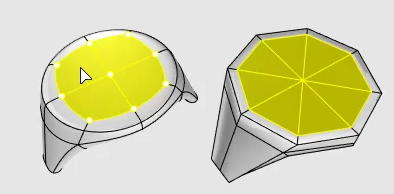

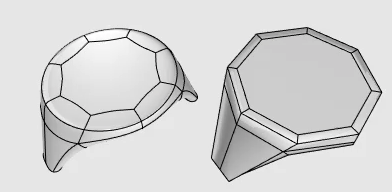

The MergeFaces command merges a connected set of SubD or mesh faces into a single face.

Input

  • SubD Face, Edge, Vertex
  • Mesh Face, Edge, Vertex

How faces are merged:

  • If a vertex is selected, the faces around the vertex are merged into a single face.
  • If an edge is selected, the faces on either side of the edge are merged into a single face.
  • If a collection of faces is selected, they are partitioned into subsets. Each subset is merged into a single face.
  • Faces separated by a SubD crease or an unwelded mesh edge cannot be merged. Use the RemoveCrease command to remove the crease or unwelded edge before merging the faces.
  • Use Ctrl(CMD)+Shift+Click to select vertices or edges and press Delete to merge the surrounding faces into a single face. Deleting faces with Delete will leave holes.

Command-line options

Results = Selected / NotSelected

Specifies if the resulting merged face will be selected.

Mesh/SubD face loop selection (Post-selection)

To select an entire face loop

  1. Click a face.
  2. Double-click the next face that decides the loop direction.

To select a face loop range

  1. Click two faces in a loop.
  2. Double-click a face in between and next to one of the selected faces.

For more information, please refer to the Rhino documentation.
