Mesh Management

Trim

The MeshTrim command deletes selected portions of a mesh inside or outside where they are intersected with another object.

Split

The MeshSplit command divides meshes into parts with another object.

Triangulate

The TriangulateMesh command splits all planar quadrangular polygon mesh faces into two triangular mesh faces.

Weld

The Weld command removes creases from a mesh by merging coincident mesh vertices.

Individual texture mapping, colour, and normal vector data are averaged/created/destroyed for the affected vertices.

Weld will create new vertex normals at each welded vertex that are the average of the adjacent face normals. After welding, one vertex is shared by more than one face.

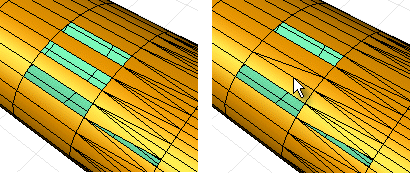

Delete Face

The DeleteFaces command removes selected faces from a mesh, SubD or Polysurface. It is most effective in a shaded display mode since you can see and directly pick faces.

Fill Hole

The FillMeshHole command fills a selected hole in a mesh.

Fill Holes

The FillMeshHoles command fills all holes in a polygon mesh object with triangular faces.

Unlike the ‘Fill Hole’ command, this one does not require selecting an open edge; instead, it will attempt to close all holes in the mesh.

Offset

The OffsetMesh command copies a mesh by moving the vertices a specified distance with different direction modes.

Boolean Union

The MeshBooleanUnion command trims away the shared areas of selected meshes, polysurfaces, or surfaces and creates a single mesh from the unshared areas.

Boolean Difference

The MeshBooleanDifference command trims away the shared areas of selected meshes, polysurfaces, or surfaces with another set of meshes, polysurfaces, or surfaces.

Boolean Split

The MeshBooleanSplit command trims away shared areas of selected meshes, polysurfaces, or surfaces and create separate meshes from the shared and unshared parts.

Boolean Intersection

The MeshBooleanIntersection command trims the unshared areas of selected meshes, polysurfaces, or surfaces.
