Sprue Single
Sprue Single

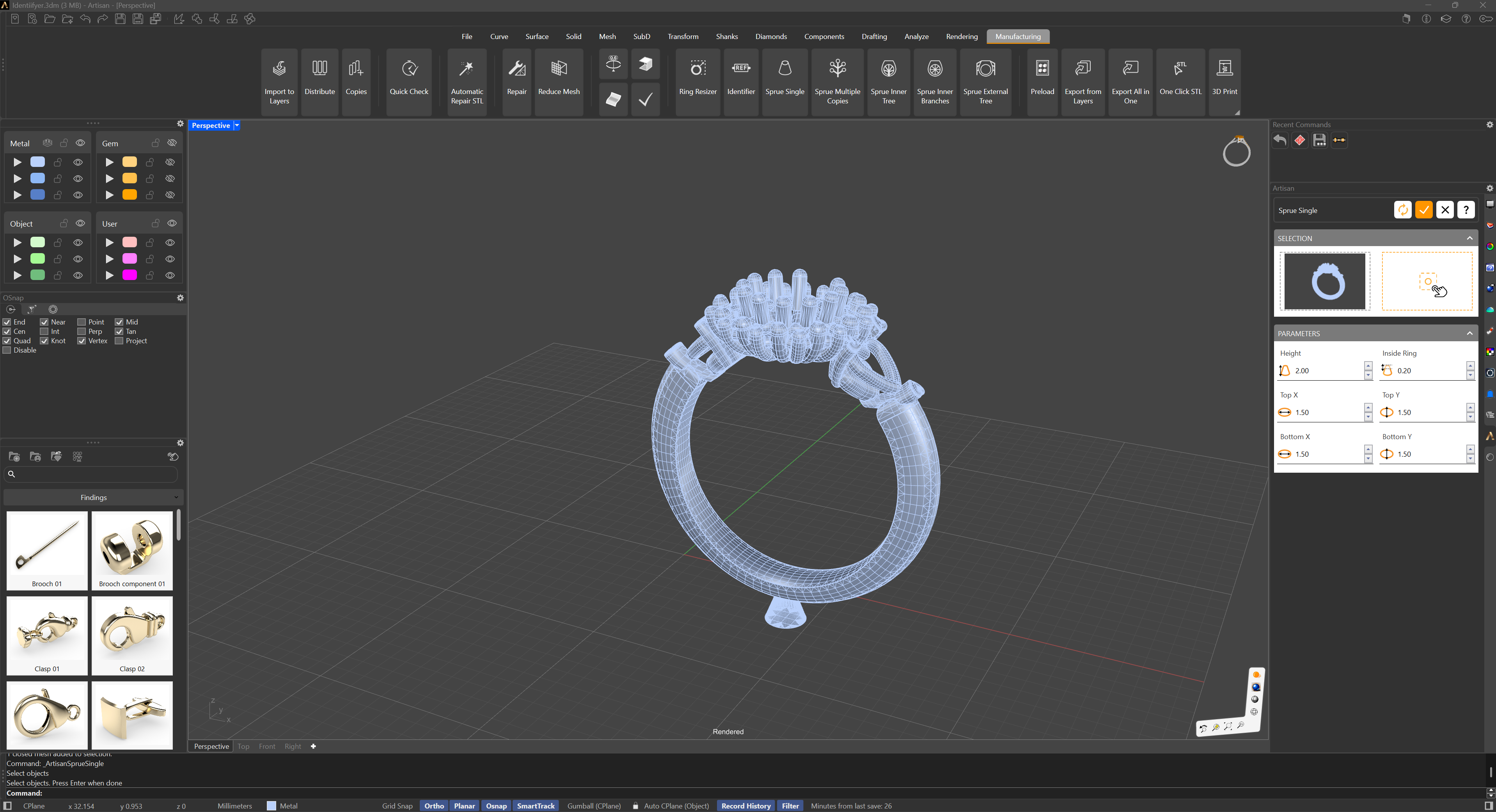

The Sprue Single command places a sprue at a specified point on the mesh, allowing customization of its shape and dimensions.
- Point Selection
- The user is prompted to select the exact point on the mesh where the sprue will be placed.
- Parameter Configuration
- Height: Adjusts the length of the sprue.
- X and Y Axes: Defines the diameters of the ellipse at the top and bottom of the sprue.
- Shape: Allows the creation of either round sprues (with a consistent diameter) or conical sprues (with variations between the top and bottom ellipses).
- Applications
This command is ideal for designing customized sprues tailored to specific casting production needs.
