Solid

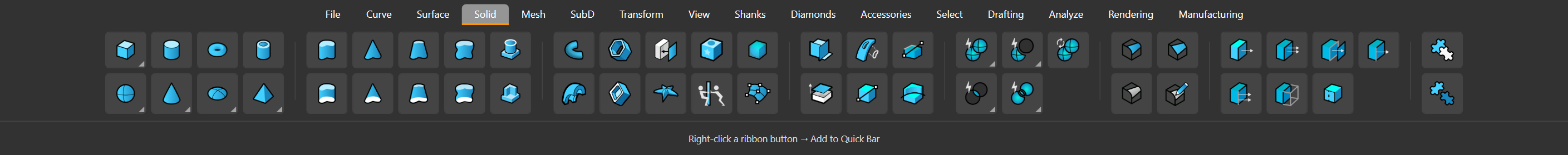

Eight groups, left to right. Buttons with a submenu list it underneath.

Primitives

• BoxA rectangular solid from two corners and a height.
  • Diagonal
  • 3 Points, Height
• CylinderA cylinder from a base circle and a height.
• TorusA ring solid from a centre circle and a tube radius.
• TubeA cylinder with a hollow core.
• SphereA sphere from a centre and radius.
  • Diameter
  • 3 Points
  • 4 Points
  • Around Curve
• ConeA cone from a base circle and an apex.
  • Truncated Cone
• EllipsoidA solid with three independent axes.
  • By Diameter
  • From Foci
  • Corner
  • Around Curve
• PyramidA pyramid on a polygonal base.
  • Truncated Pyramid
  • Paraboloid

Extrude

• Extrude CurveExtrudes a closed curve into a capped solid.
• Extrude Curve to PointExtrudes a curve to a single apex.
• Extrude Curve TaperedExtrudes with a draft angle.
• Extrude Curve Along CurveExtrudes a curve following a path.
• BossRaises a boss from a face.
• Extrude SurfaceGives a surface thickness, making it solid.
• Extrude Surface to PointExtrudes a surface to a single apex.
• Extrude Surface TaperedExtrudes a surface with a draft angle.
• Extrude Surface Along CurveExtrudes a surface following a path.
• RibBuilds a rib between a curve and a solid.

Thickness and caps

• Solid PipeA capped pipe along a curve.
• Solid ShellHollows a solid, leaving a wall thickness.
• CapCaps planar holes to close an open solid.
• RecessSinks a recess into a face.
• Bounding BoxThe smallest box enclosing the selection.
• Smart ProfilesThe library of parametric section profiles.
• Curve ShellShells a solid following a curve you pick.
• Cap RoundCaps an opening with a rounded dome.
• Push PullDrags a face to add or remove material.
• Solid Control PointsTurns on the control points of a solid.

Create and cut

• Create SolidJoins surrounding surfaces into a closed solid.
• CutCuts a solid with another object.
• Fold Planar FacesFolds a planar face about a hinge line.
• Extract SurfacePulls a face out of a polysurface.
• DiagonalA box drawn from its diagonal.
• Wire CutCuts a solid through with a curve, like a wire saw.

Booleans

• Boolean UnionFuses solids, keeping them editable afterwards.
  • Boolean Union (Rhino)
• Boolean DifferenceSubtracts one solid from another, editably.
  • Boolean Difference (Rhino)
• Boolean IntersectionKeeps only the volume two solids share.
  • Boolean Intersection (Rhino)
• Boolean SplitSplits a solid with another, keeping both parts.
  • Boolean Split (Rhino)
• Boolean UpdateRecomputes a boolean after you edit its inputs.

Fillet and chamfer

• Fillet EdgeRounds the edges of a solid.
• Chamfer EdgeBevels the edges of a solid.
• Blend EdgeA curvature-continuous fillet.
• Edit Fillet EdgeReopens an existing fillet to change its radius.

Face editing

• Move FaceMoves a face, rebuilding the solid around it.
• Move Untrimmed FaceMoves the underlying face beneath a trim.
• Move Face to a BoundaryMoves a face until it meets another object.
• Move EdgeMoves an edge, adjusting the faces it joins.
• Move Untrimmed EdgeMoves the underlying edge beneath a trim.
• Extrude FaceExtrudes a face out of the solid.
• Merge All Coplanar FacesMerges faces that lie in the same plane.

Join

• Join EdgeForces two near-matching edges to join.
• Unjoin EdgeSeparates joined edges again.
