Cross
Cross
You can quickly create a cross-shape polyline with just a few clicks.
.png)

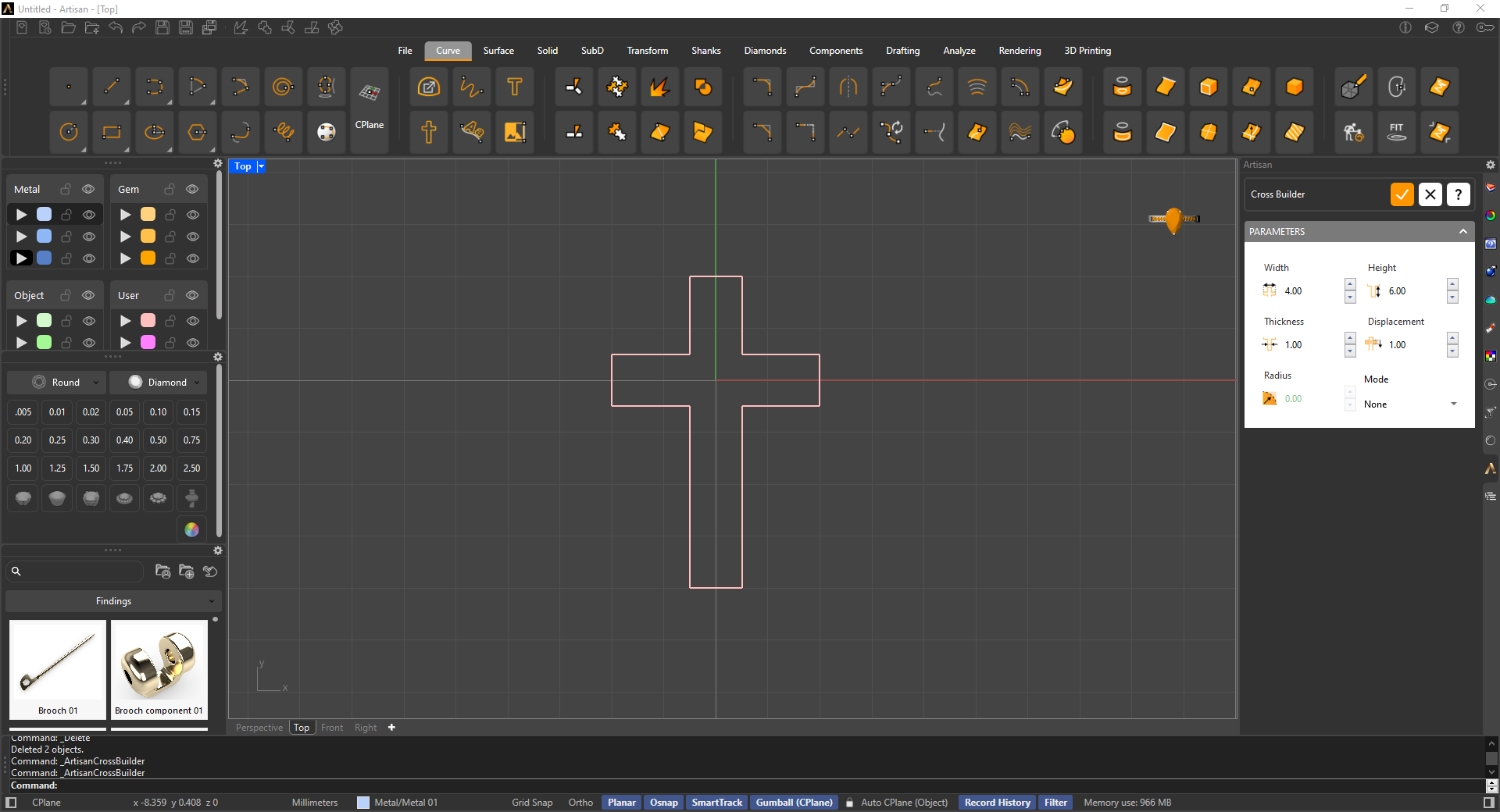

Once you click the Cross icon, the Cross Builder will open in the commands panel.
Here you can edit the total Width and Height of the cross parameters, as well as the thickness of the sections and the location of the horizontal part with the Displacement parameter.
Additionally you can add a round fillet at the corners in Round or Chamfer mode and control its radius or length
