Beta
These docs cover RhinoArtisan 7.0, which is still in beta. The contents are provisional: features and pages can still be added, changed or removed before the final release.
Tabs
Transform

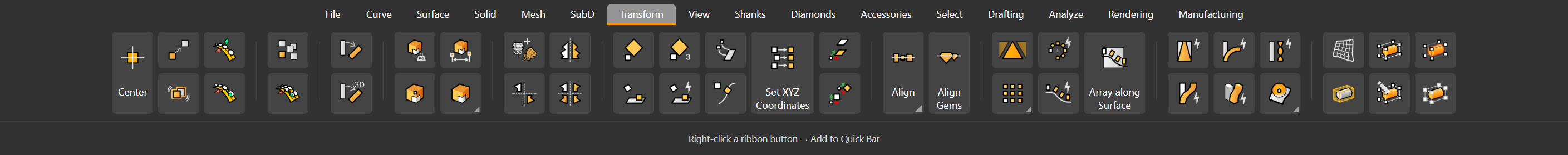

The Transform tab. Each divider marks a group, described below in the same order
Ten groups, left to right. Buttons with a submenu list it underneath.
Move
CenterMoves the selection to the world origin.
MoveMoves objects from one point to another.
Move by NormalMoves along the surface normal under the cursor.
Move RandomScatters the selection within a range you set.
Move on ObjectsDrags objects while they stay stuck to a surface.
Copy
CopyCopies objects from one point to another.
Copy on ObjectsDrops copies onto a surface as you click.
Rotate
Scale
Scale by WeightScales a piece until it weighs what you ask for.
Scale by DimensionsScales to a target measurement.
Scale by CenterScales about the object's own centre.
Scale 3DUniform scaling in all three axes.
Scale 1D
Non-Uniform
Scale by Plane
Scale 2DMirror
PairMakes the mirrored twin of a piece — the other earring.
MirrorMirrors across a line you draw.
Opposite MirrorMirrors to the opposite side in one click.
Quad MirrorMirrors into all four quadrants at once.
Orient
OrientMoves and rotates from two reference points.
Orient by 3 PointsPlaces an object using three reference points.
Orient Curve to EdgeWraps a curve onto a surface edge.
Orient on SurfacePlaces an object onto a surface, following its normal.
Quick Orient on SurfaceThe same, with the prompts cut to a minimum.
Perpendicular to CurveStands an object up perpendicular to a curve.
Set XYZ CoordinatesSets the exact X, Y and Z of the selection.
Project to CPlaneFlattens the selection onto the construction plane.
Remap to CPlaneMoves objects onto a different construction plane.
Align
AlignLines several objects up on one edge or centre.
Align Top
Align Horizontal Centers
Align Bottom
Align Left
Align Vertical Centers
Align Right
Align Centers
Distribute Objects
Align GemsLines up gems by table, girdle or culet.
Array
PatternRepeats a shape as a pattern you can keep editing.
Quick Polar ArrayA circular array with the prompts cut short.
ArrayA rectangular grid of copies.
Quick Array on CurveSpreads copies along a curve, live.
Array along SurfaceSpreads copies across a surface.
Polar Array
Array along CurveDeformation
Quick TaperTapers a shape along an axis, live.
Quick BendBends a shape around an axis, live.
Quick TwistTwists a shape around an axis, live.
Quick FlowFlows a shape onto a curve, live.
Quick Flow by SurfaceFlows a shape onto a surface, live.
SplopRhino's deformation set.
Taper
Bend
Twist
Flow along Curve
Flow along Surface
Shear
