Named Pendant

Named Pendant

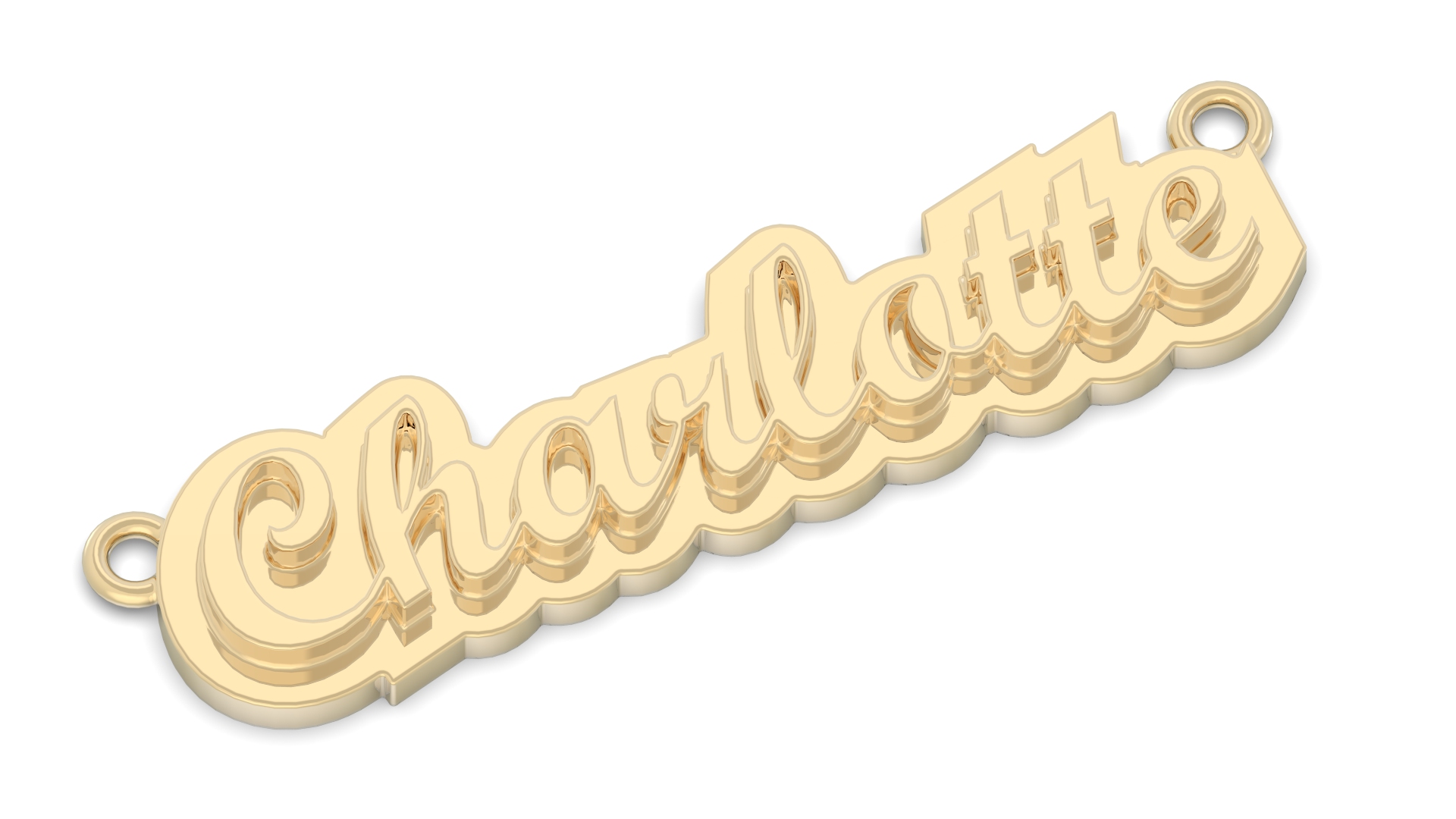

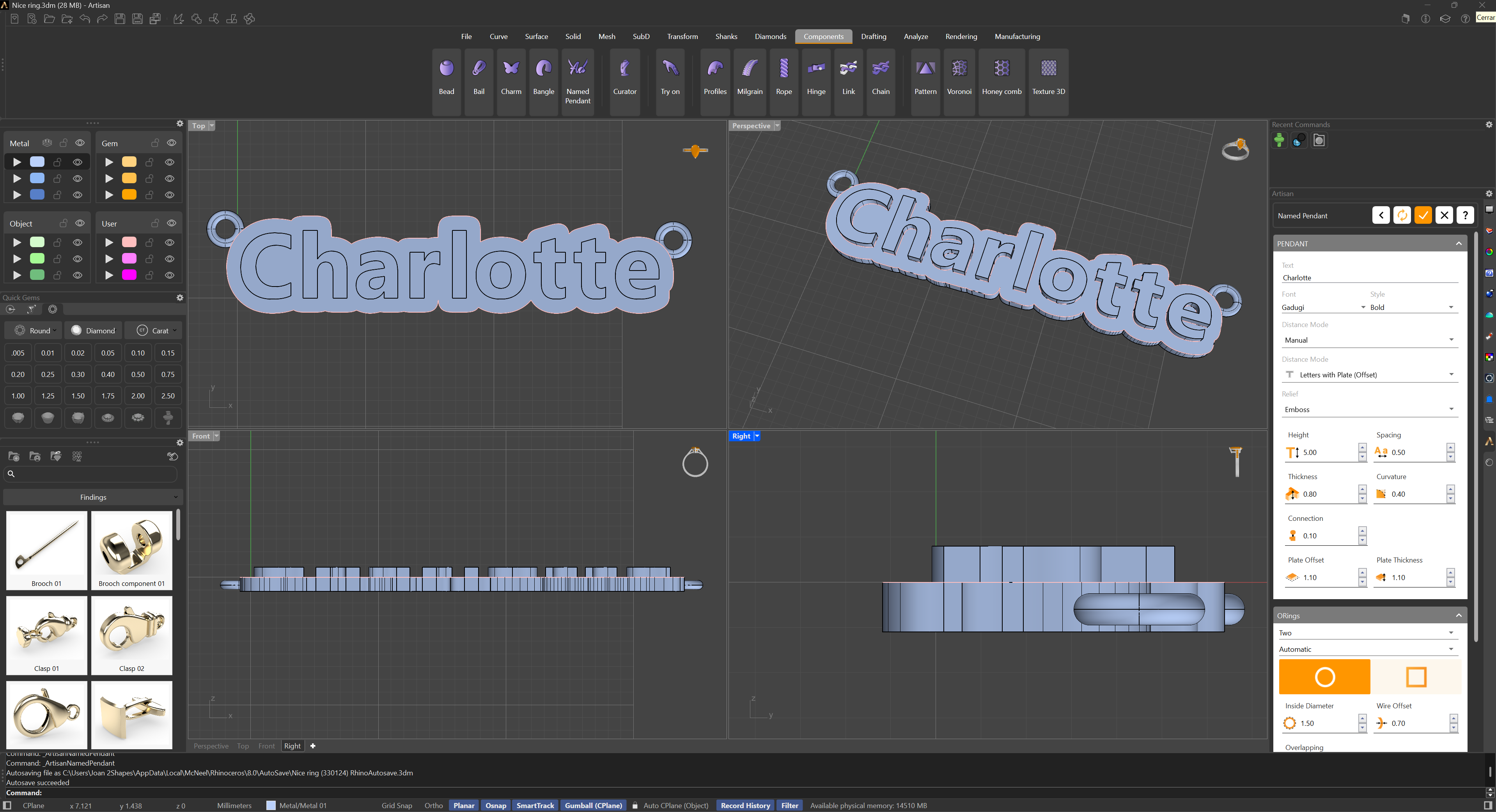

The Named Pendant command in RhinoArtisan allows users to create personalized pendants featuring a custom name. Upon activating the command, a pendant with a default name appears in the viewport, which can be customized using the Pendant Panel.

Features and Parameters of the Named Pendant Command:

Pendant Panel :

1. Name: Define the name to display on the pendant.
2. Font: Select the font type for the text.
3. Font Style: Choose the style of the font, such as bold or italic.
4. Letter Spacing Mode:
   • Automatic: Adjusts the spacing between letters automatically.
   • Manual: Enables control over letter spacing using the Spacing parameter.
5. Pendant Style:
   • Only Letter: Creates the pendant using only the letters.
   • Letter with Plate (Rectangular): Adds a rectangular plate behind the letters.
   • Letter with Plate (Offset): Adds a plate with an offset boundary around the letters.
6. Relief:
   • Emboss: Places the letters raised on top of a plate.
   • Engraving: Carves the letters into the plate by removing material.
7. Height: Adjusts the size of the letters.
8. Thickness: Sets the thickness of the letters.
9. Connection: Manages the connections between accents and letters or the dot and stem of the letter “i.”
10. Plate Offset: Controls the distance between the letters and the plate’s edge.
11. Plate Thickness: Adjusts the thickness of the plate.

O-Rings Panel :

This panel allows customization of the rings used to attach a chain to the pendant:

1. Number of O-Rings: Choose between none, one, or two rings.
2. Positioning:
   • Automatic: Positions the rings based on the design.
   • Manual: Enables precise control over the rings’ placement.

The Named Pendant command provides flexibility in design, enabling users to create unique pendants tailored to individual preferences.
