Objective: Learn how to repeat the prongs around the piece and how to seat every gem with the cutters.

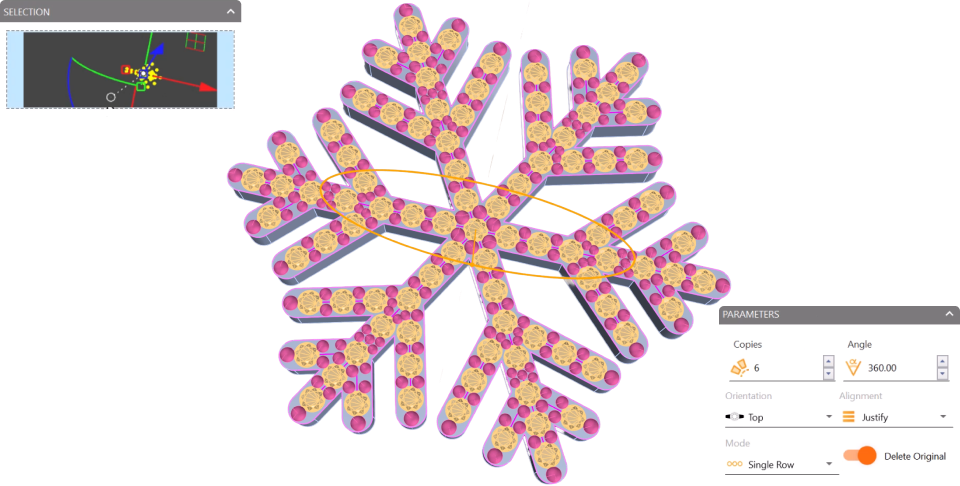

Polar Array of the Prongs
Select the prongs and, in the “Transform” tab, use the “Quick Polar Array” command to create the rest.
Set the orientation to Top and the snowflake is complete.

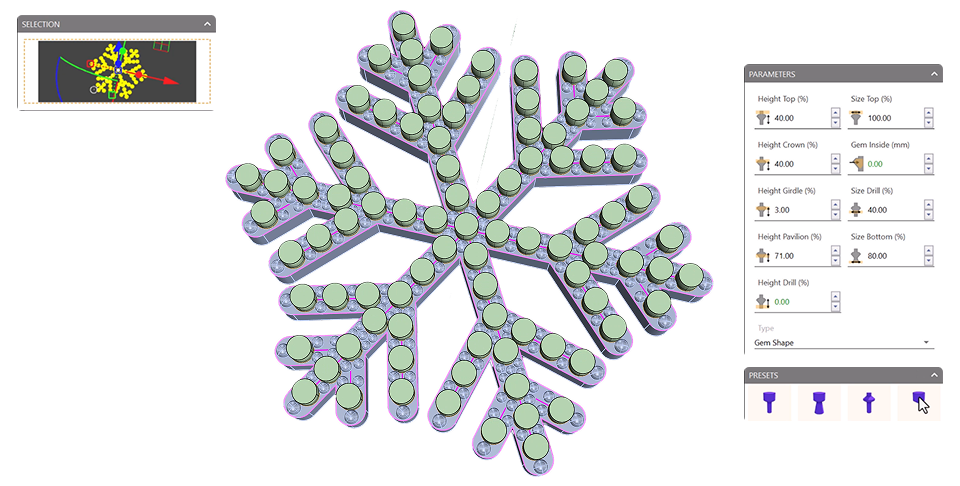

Create the Cutters

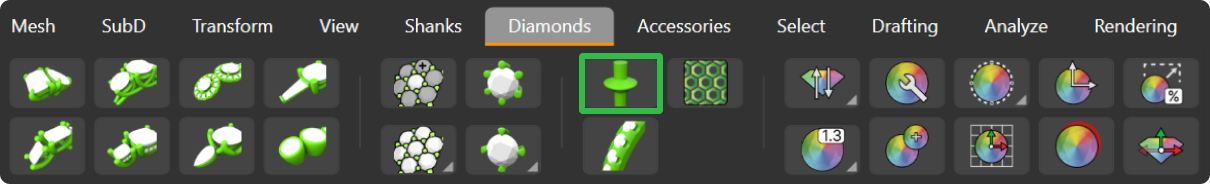

In the “Diamonds” tab, click on the “Cutter” command.
- Choose all the prongs and add them to the selector.
- Switch to Preset 4 and accept.

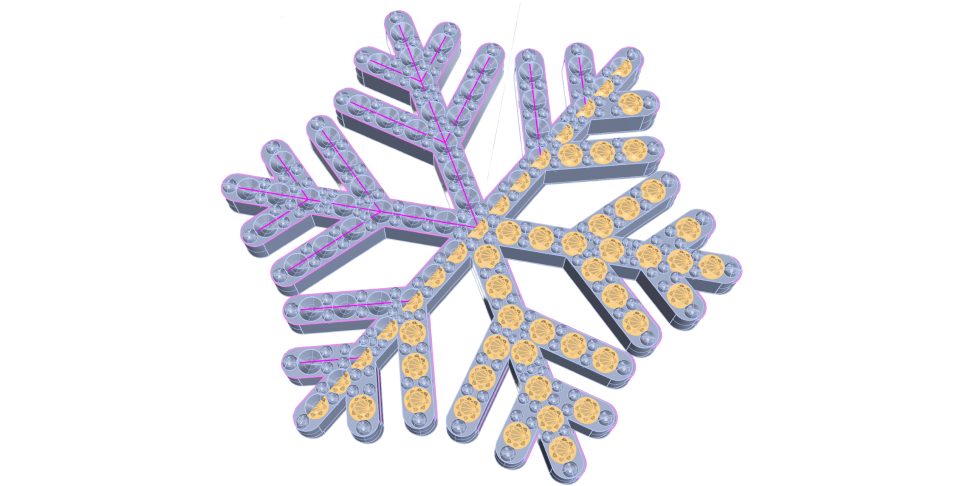

Boolean Difference
Go to the “Solid” tab and use the “Boolean Difference” command.
- Select the metals and press the command.
- Then select the cutters and press Enter to complete the boolean operation.
The metal is cut and the prongs are perfectly positioned.
Video Lesson
Next Step
Use this snowflake as a starting point for your own models.
Watch the full video lesson to follow the whole process end to end, and feel free to share your results with us.
