Objective: Learn how to distribute gems of graduated sizes along the rail.
Run the Command

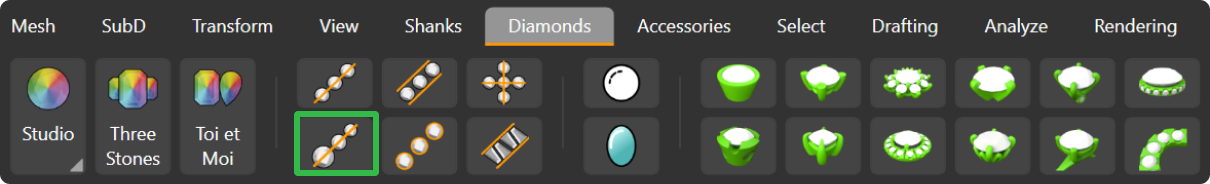

Go to the “Diamonds” tab and use the “Advanced Gems on Curve” command.
Add both the curve and the inner surface of the rail to the command selector.

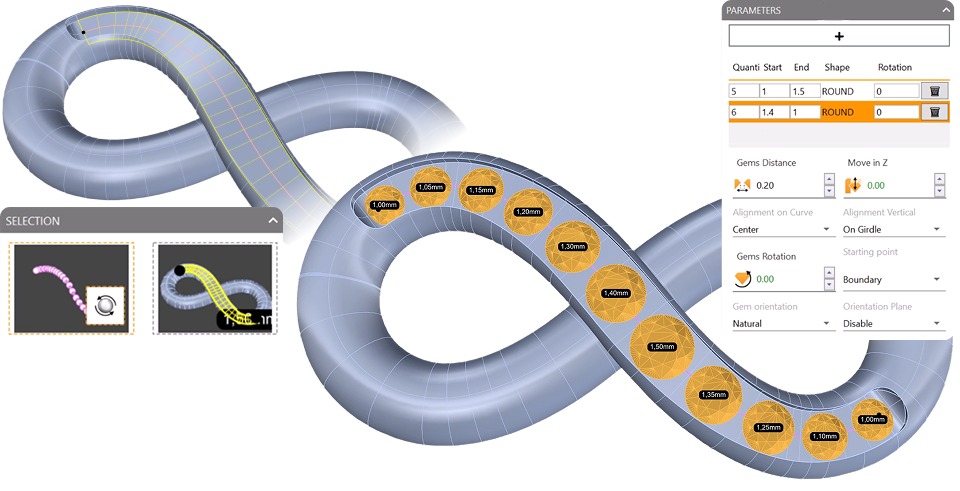

Size Ranges
- Adjust the gem size for the first range: start
1and end1.5. - Create another range and set start
1.4and end1. - Change the alignment to
Center.
Number of Gems
Adjust the number of gems: 5 for the first range and 6 for the second, so the gems occupy most of the rail.
Video Lesson
Next Step
Next, we’ll create the cutters and the prongs.
