Moebius Diamond Pendant
Lesson 56 of 62
Sweep the Profile with Curves 2 Rails
Sign in to access this lesson
This lesson is part of Precision & Detail Design, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Precision & Detail Design, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Learn how to turn the two rails into the base solid of the Moebius pendant.
Place the Asset

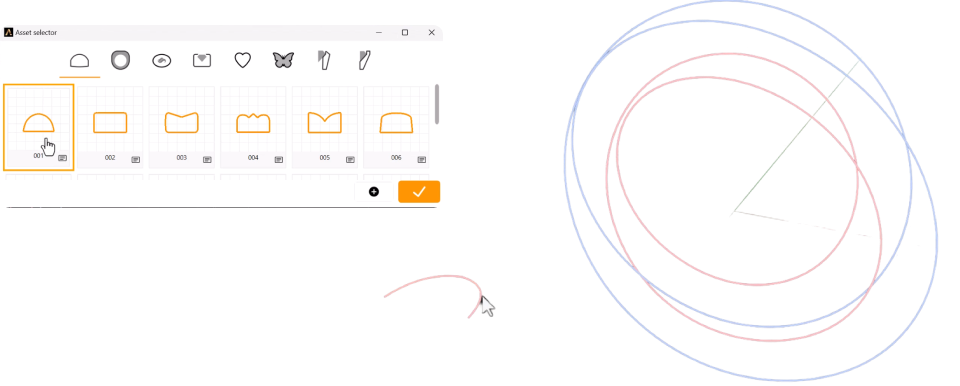

Use the “Assets” command. In the asset selector panel, double click on profile 001.
Then click in the perspective viewport — the exact spot doesn’t matter for now — and rotate it -90° to place it as shown in the image.
Curves 2 Rails

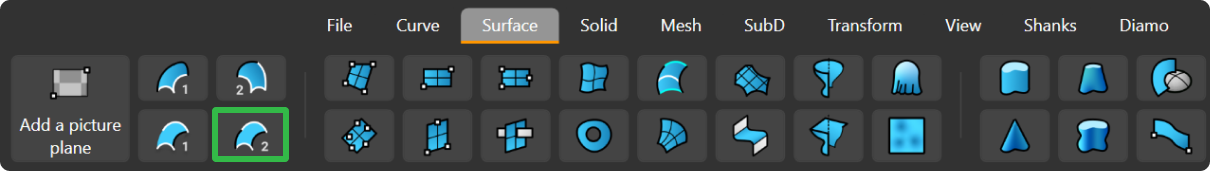

Go to the “Surface” tab and use the “Curves 2 Rails” command to position the asset on our curve.

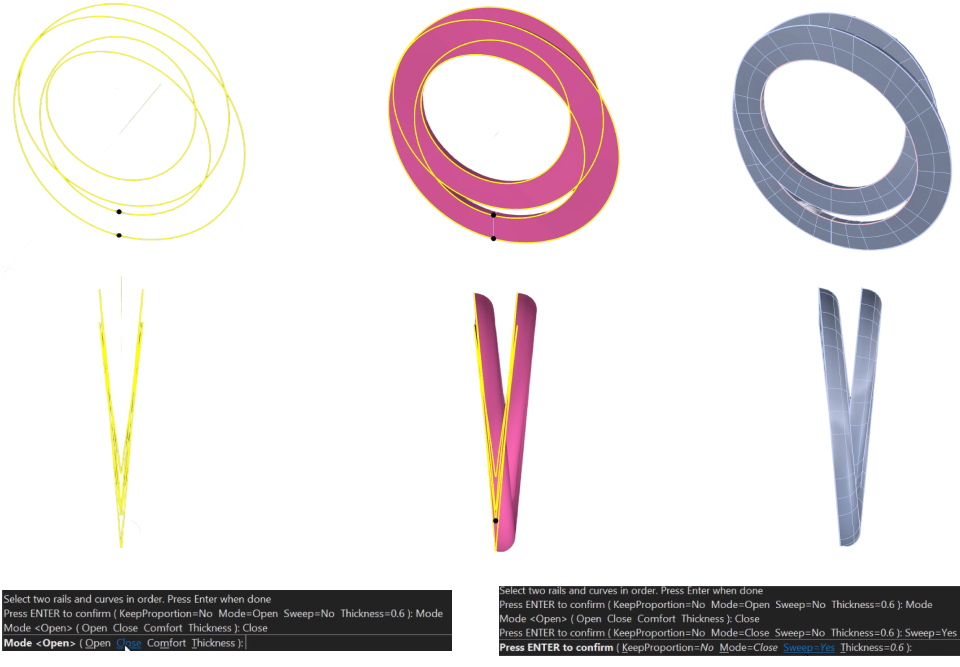

- Select the two curves and then the asset.
- Press Enter to execute.
Command Options
The command offers more options in the command bar:
- Switch the mode to
Closed. - Activate the Sweep option.
- Press Enter to confirm.
You now have the base solid of the Moebius pendant. Move the asset to another layer to hide it.
Video Lesson
Next Step
Next, we’ll create the reference curves and carve the channel for the gemstones.
