The Ring Band
Sign in to access this lesson
This lesson is part of Timeless Jewels, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Timeless Jewels, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Now we’re moving on to the Shank, or the ring band.

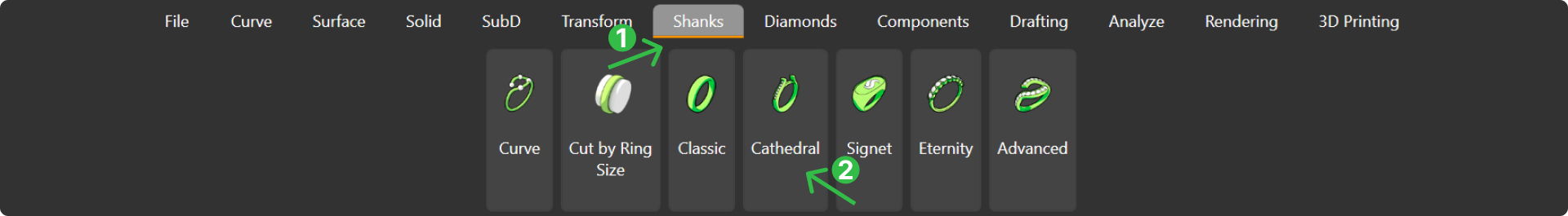

Go to the Shanks (1) tab and select the Cathedral (2) command.

We’ll start by selecting element CA016.

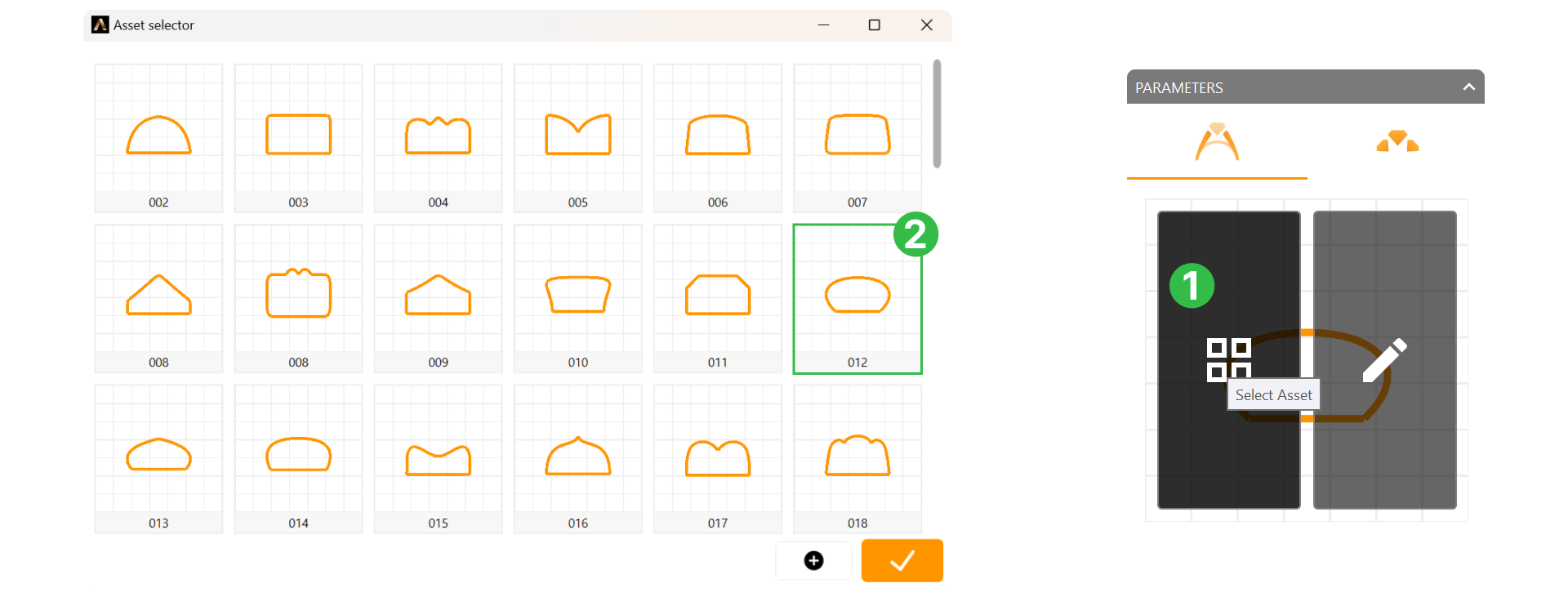

Click on the Profile preview (1). In the Asset Selector (2), select profile 012.

Adjust the size to United States of America and set the ring to size 6 ½.

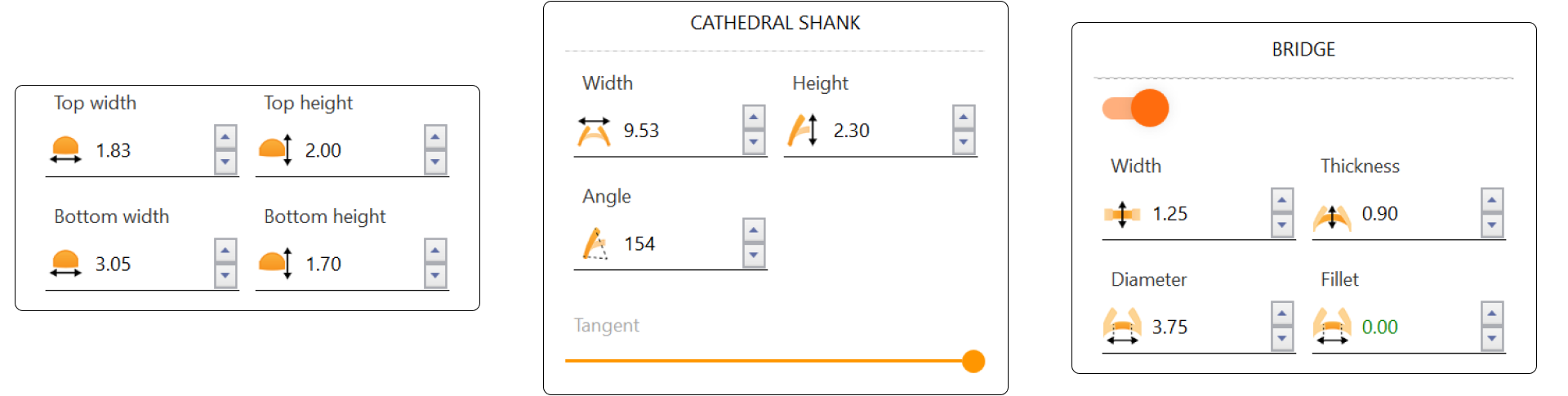

Shank Parameters
- Top Width: 1.83 mm
- Top Height: 2 mm
- Bottom Width: 3.05 mm
- Bottom Height: 1.7 mm
Cathedral Shank Parameters
- Width: 9.53 mm
- Height: 2.3 mm
- Angle: 154º
- Tangent: 100%
Adjusting the Bridge
- Width: 1.25 mm
- Thickness: 0.9 mm
- Diameter: 3.75 mm
- Fillet: 0

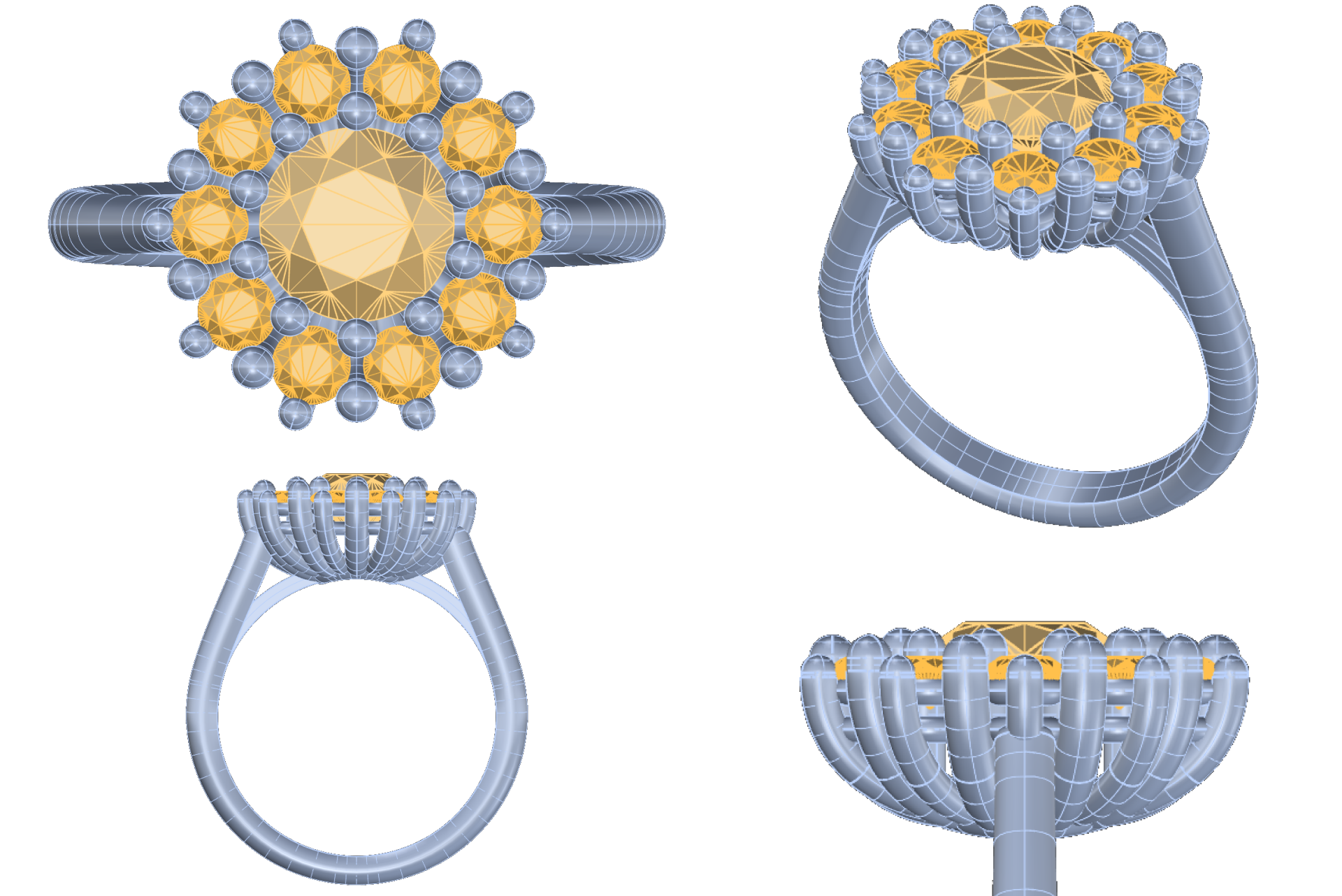

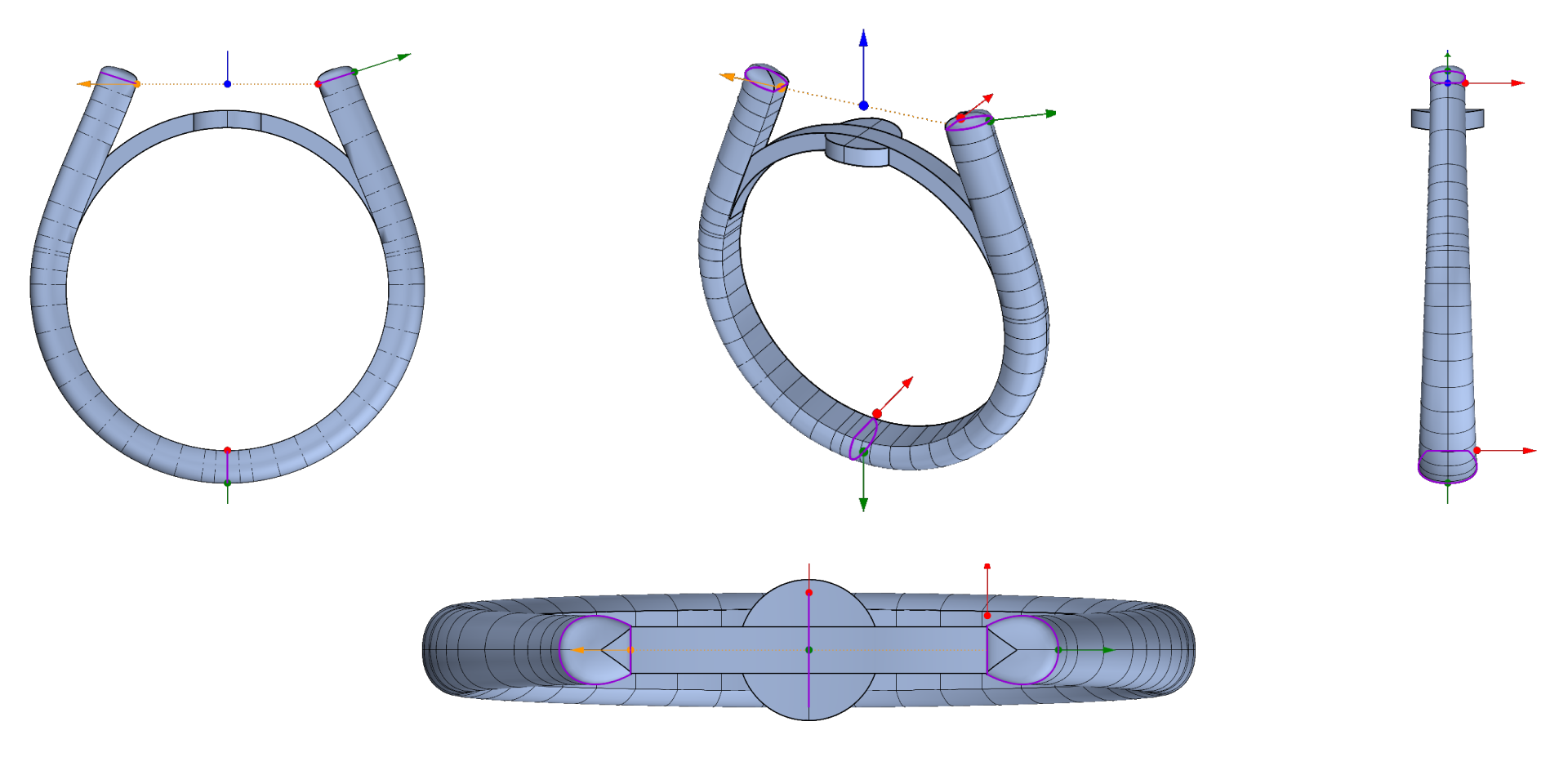

These measurements give our band a graceful lift, creating space for the central gem while adding elegance to the design.

We set the bridge diameter to 3.75 mm to securely support the cluster base. This final adjustment ensures that the cluster is stable and well-balanced on the ring.

Video Lesson
Ne****xt Step
Final Steps and Rendering
