This lesson will focus on the Prongs Tab.
Starting with the Prongs Tab:

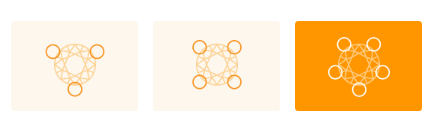

- Mode: 3º

Now, for the Internal Prongs:

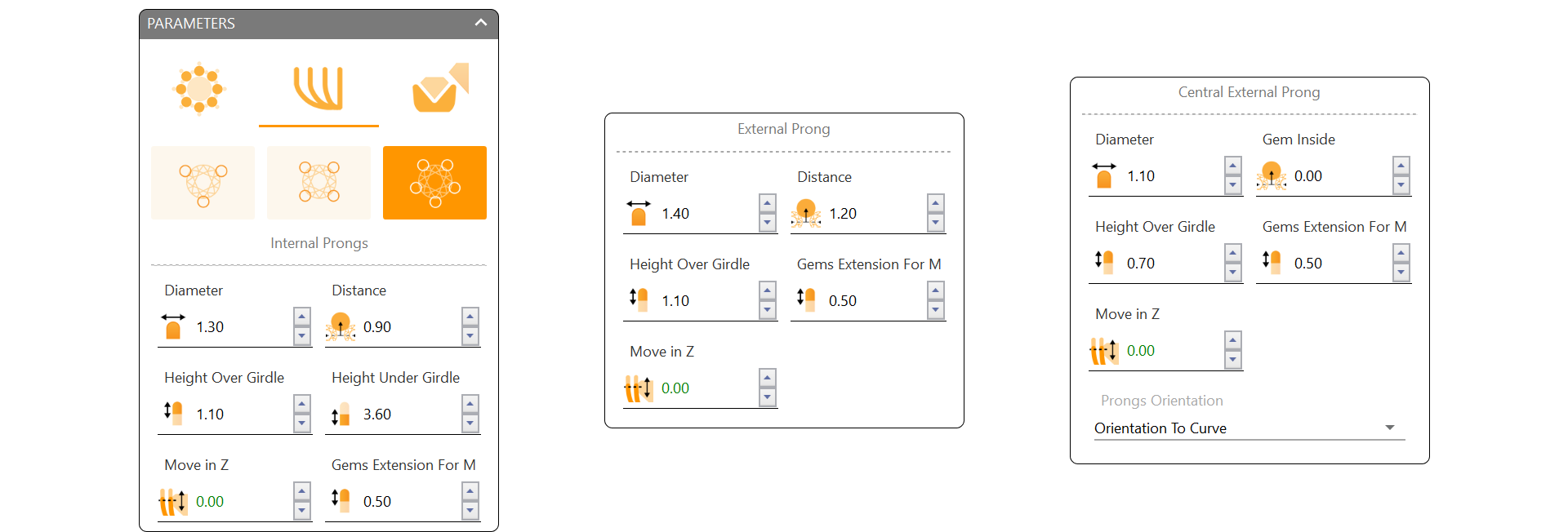

- Diameter: 1.3 mm
- Distance: 0.9 mm
- Height Over Girdle: 1 mm
- Height Under Girdle: 3.6 mm
- Move in Z: 0
- Gems Extension for Manufacturing: 0.5 mm
These internal prongs will securely hold the gemstones in place while keeping them aligned.

The External Prongs:
- Diameter: 1.4 mm
- Distance: 1.2 mm
- Height Over Girdle: 1.1 mm
- Gems Extension for Manufacturing: 0.5 mm
- Move in Z: 0
Now, let’s set up the Central External Prong:
- Diameter: 1.1 mm
- Gem Inside: 0.1 mm
- Height Over Girdle: 0.7 mm
- Gems Extension for Manufacturing: 0.5 mm
- Move in Z: 0
These external prongs secure the cluster and give a refined, stable look to our design.
