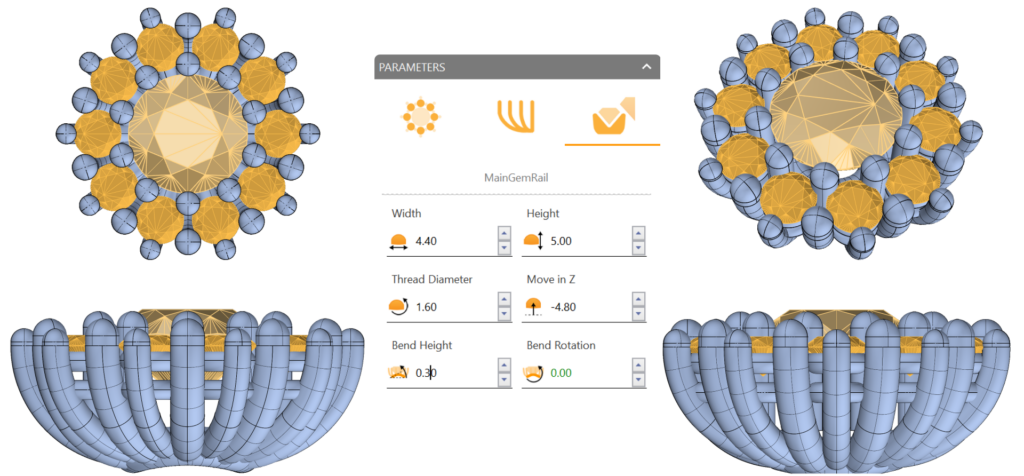

Now, we’ll configure the Main Gem Rail Tab.
Here are the parameters:
- Width: 4.4 mm
- Height: 5 mm
- Thread Diameter: 1.6 mm
- Move in Z: -4.8 mm
- Bend Height: 0.3 mm
- Bend Rotation: 0
The Bend Height is especially important because it ensures the rail follows the curve of the ring’s inner side. This gives our design a seamless, comfortable fit.
