Cabochon Ring
Lesson 33 of 34
Edge Softening, Material Application and Rendering
Sign in to access this lesson
This lesson is part of Timeless Jewels, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Timeless Jewels, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Apply edge softening for a realistic finish and assign materials to the shank and cabochon. Render your model!

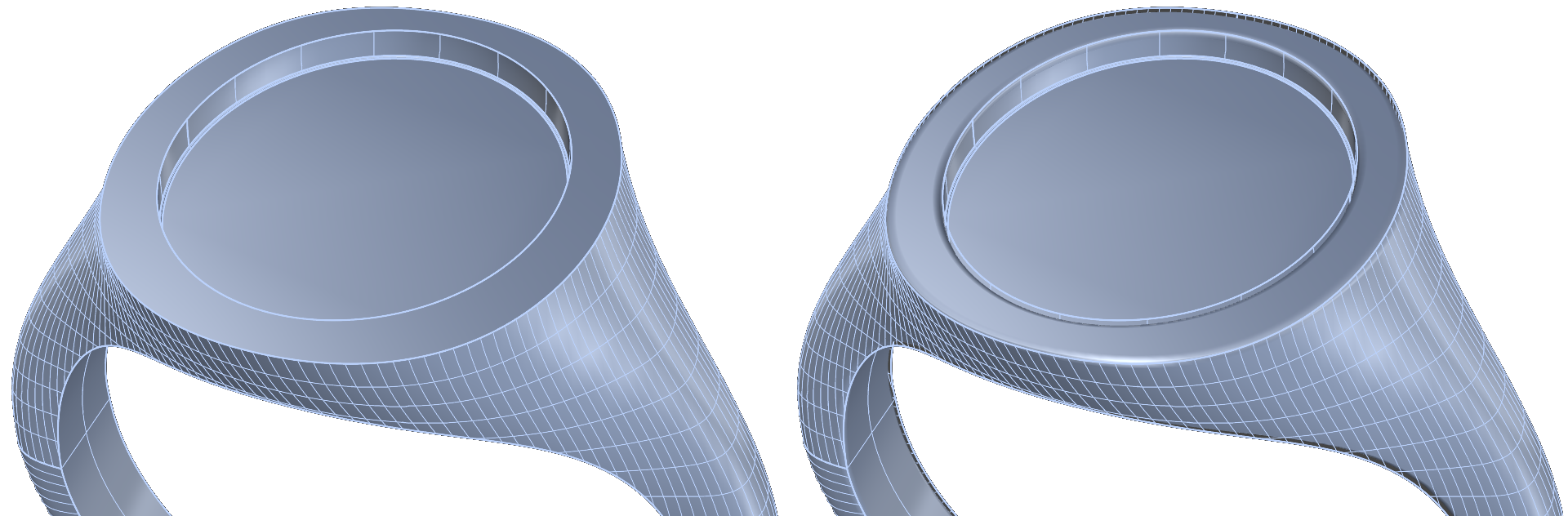

Edge Softening:

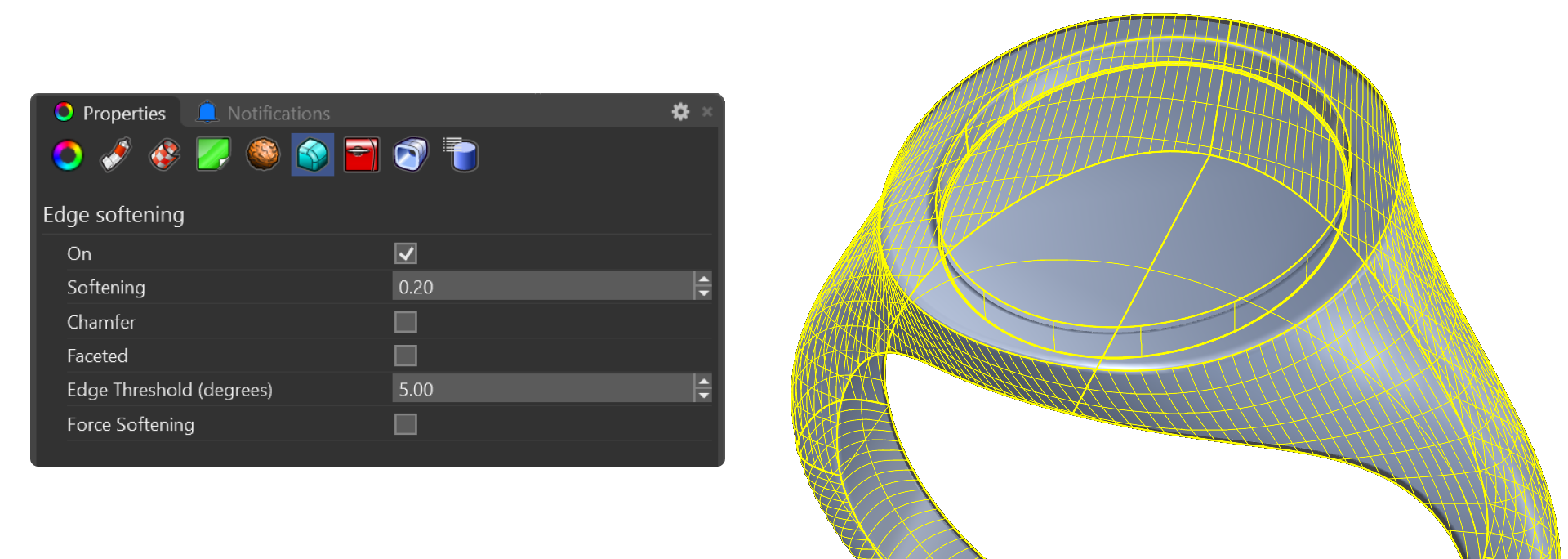

- Select the shank and press F3 to access properties.
- In the Edge Softening tab, set Softening to 0.2 and click On to activate.

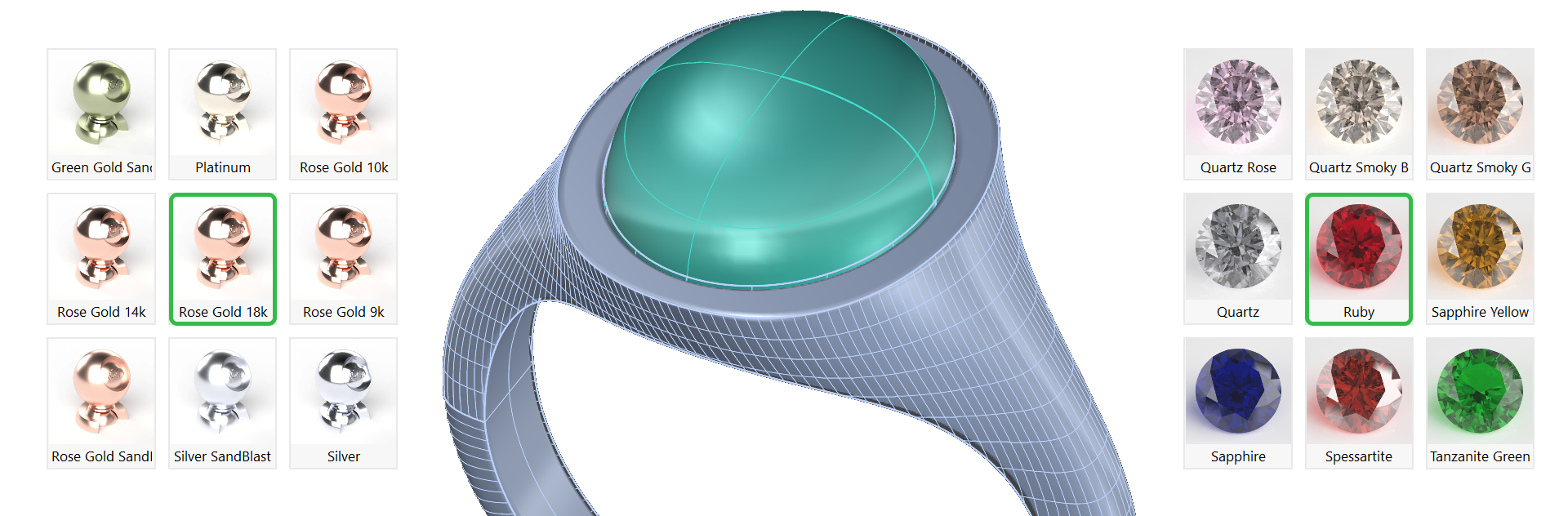

Material Application:

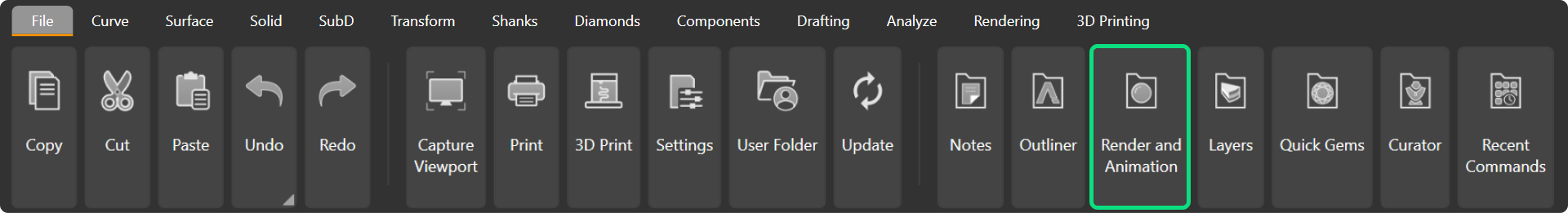

- Go to the Render and Animation panel.
- Apply Rose Gold 18k to the shank.
- For the cabochon, select a Ruby material.

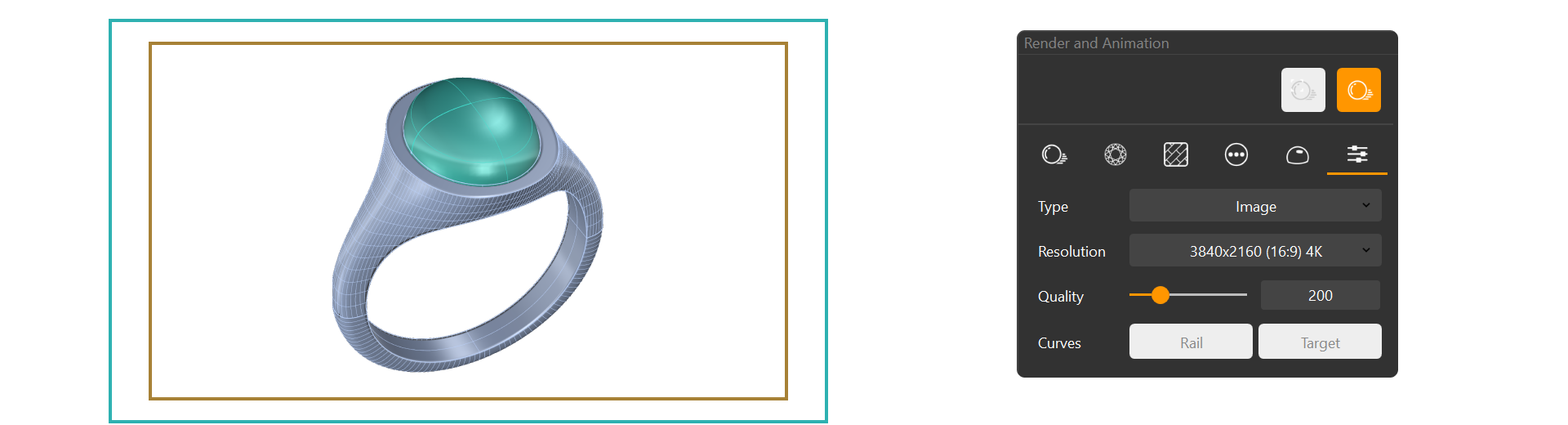

Set Perspective and Render Settings:
- Adjust the perspective angle and distance to best showcase the ring.
- Set your preferred Resolution and Quality parameters.
Click the Render button to produce the final image.
Video Lesson
Congratulations!
You’ve completed the cabochon ring. Now, explore further customization options or try rendering from different angles to capture various views.
