Objective: Apply materials to the ring and diamond and set up a professional-quality render of the design.

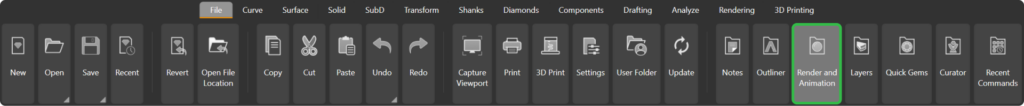

Step 1: Go to the Render tab and select Render and Animation.

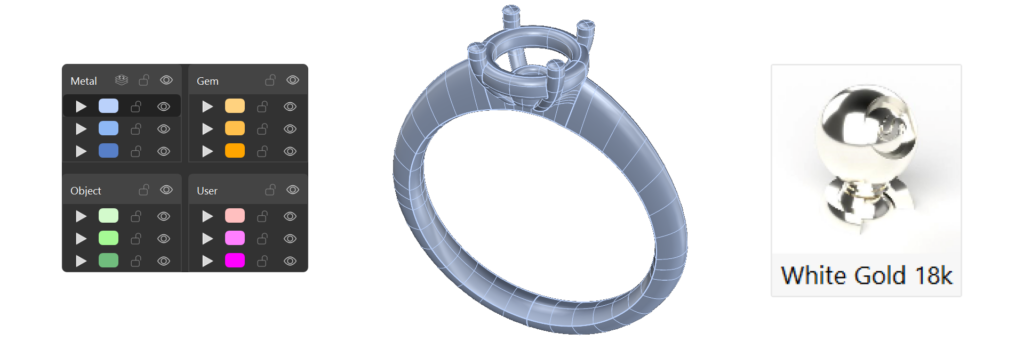

Step 2: Apply Metal Material:
- In the Layers panel, select the metal elements by right-clicking on the blue layer.
- Apply White Gold 18k as the metal material.

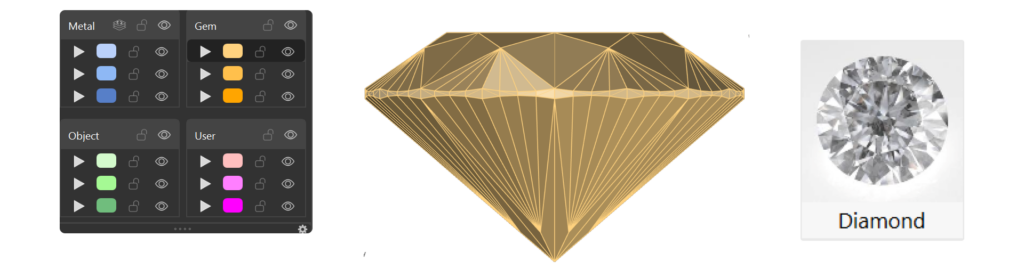

Step 3: Set Gem Material:
- Select the diamond and choose Diamond material from the Gems Materials section.

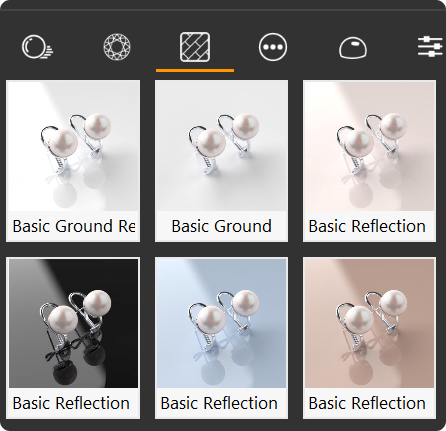

- For the ground, choose Basic Reflection Blue from the Ground category.

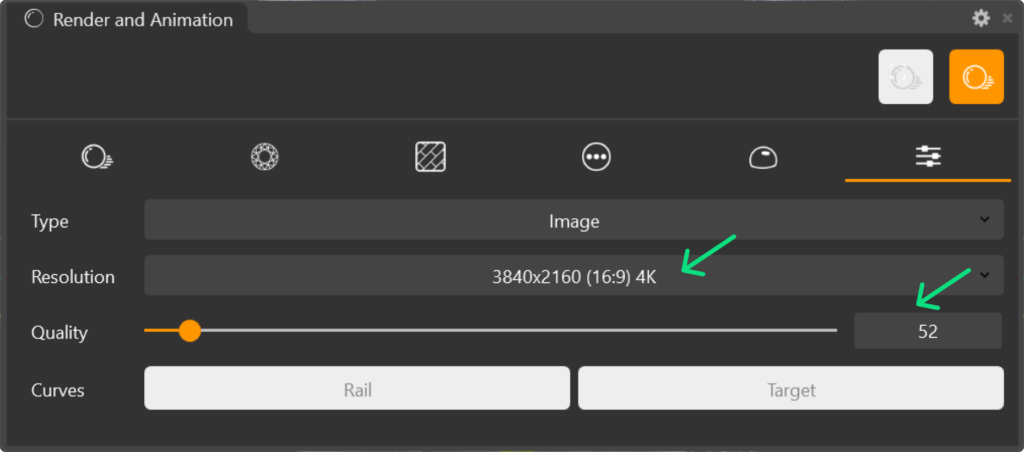

Step 4: Adjust Rendering Settings:
- Set the perspective angle and distance to showcase the design best.
- Select your preferred Resolution and Quality settings.
Step 5: Render: Click the Render button to generate the final image.
