Objective: Set up a halo for the main gem with precise measurements to achieve the desired aesthetic.
Step 1 - Halo command

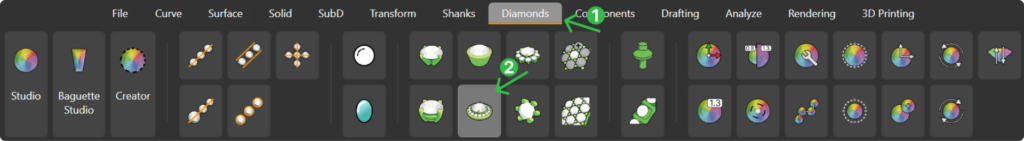

Select the main gem, navigate to the Diamonds tab (1), and click on the Halo command (2).

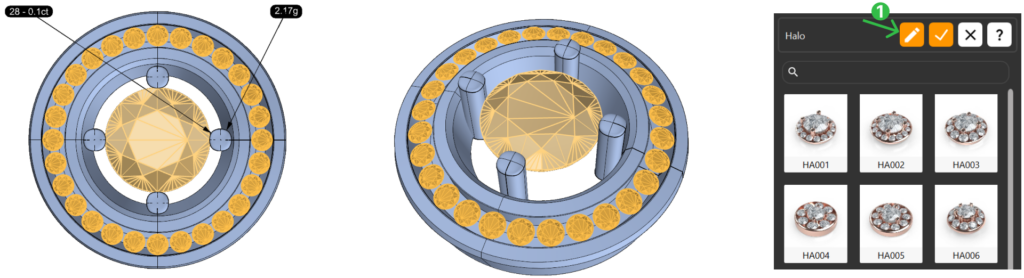

Without selecting any elements, click Edit (1).

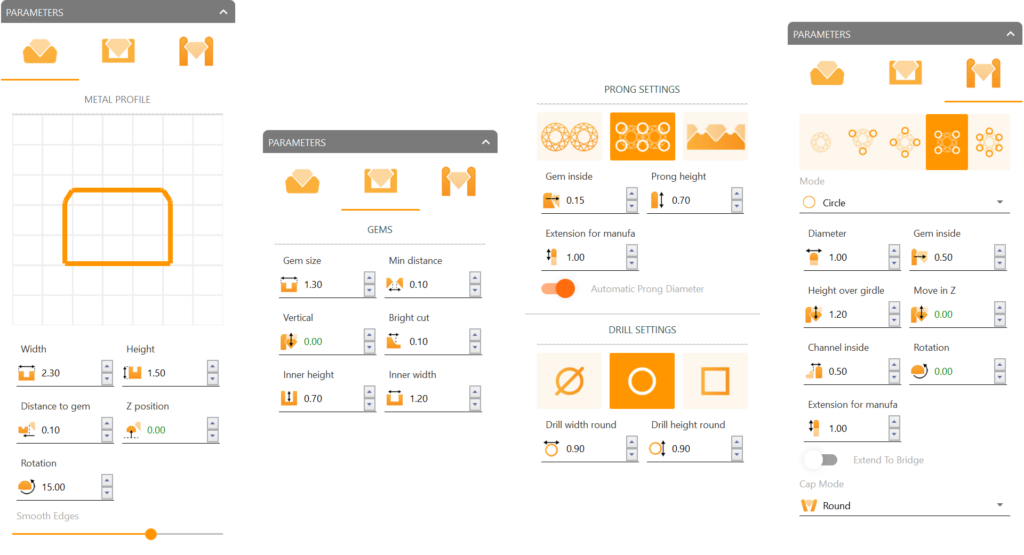

Step 2 - Set the parameters
Metal tab
Gems tab
Prong Settings
Main gem’s prong
Width: 2.3 mm
Height: 1.5 mm
Distance to Gem: 0.1 mm
Z Position: 0, Rotation: 15°
Gem Size: 1.3 mm
Minimum Distance: 0.1 mm
Vertical Distance: 0 mm
Bright Cut: 0.1 mm
Inner Height: 0.7 mm
Inner Width: 1.2 mm
Option: second prong option
Gem Inside: 0.15 mm
Prong Height: 0.7 mm
Drill Shape: Round
Width & Height: 0.9 mm
Option: 4 Rotated Prongs
Mode: Circle
Gem Inside: 0.5 mm

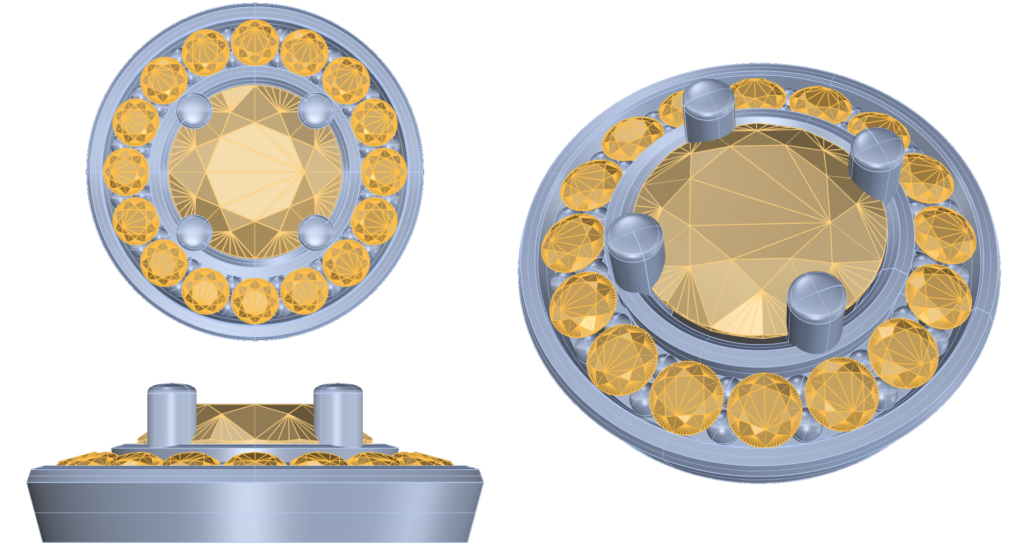

Step 3 - Confirm all changes
Click “Confirm” to save all changes.
Video Lesson
Next Lesson
In the next lesson, we will position the pendant and add a bail.
