Floating Diamond Ring
Lesson 20 of 43
Shank
Sign in to access this lesson
This lesson is part of Kickstart: From idea to Creation, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Kickstart: From idea to Creation, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

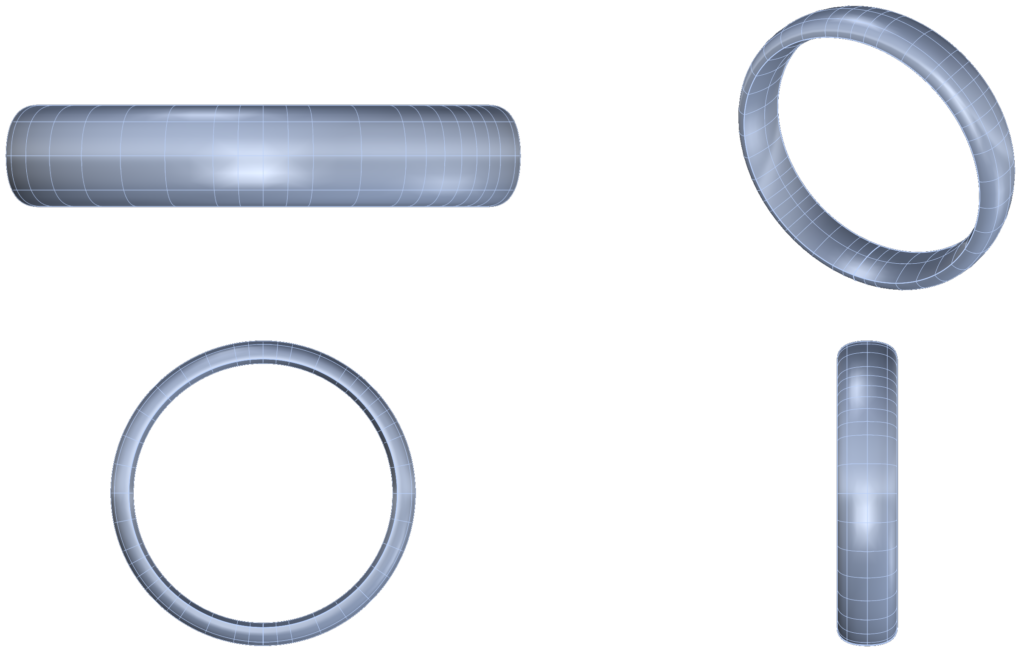

Objective: Learn how to create and modify the shank for your floating ring design.
Shank Command

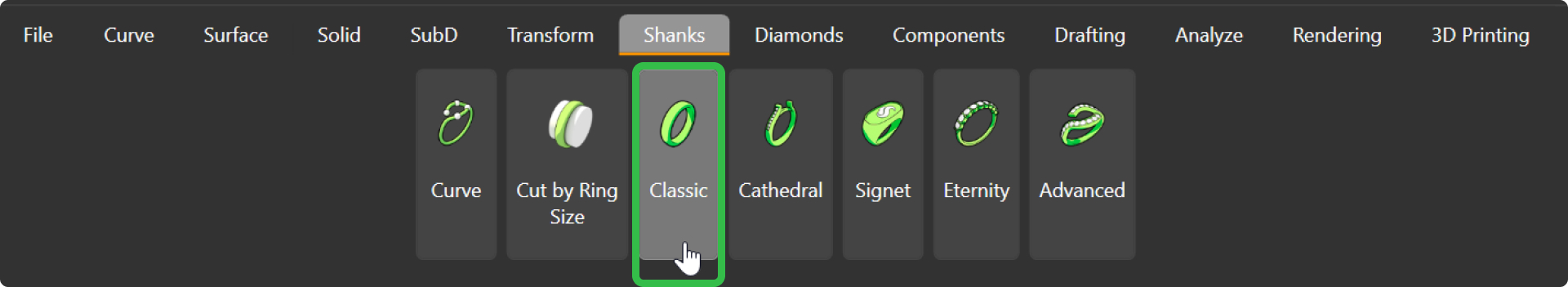

Go to the “Shanks” tab (1) and select the “Classic” command (2).
Classic Library

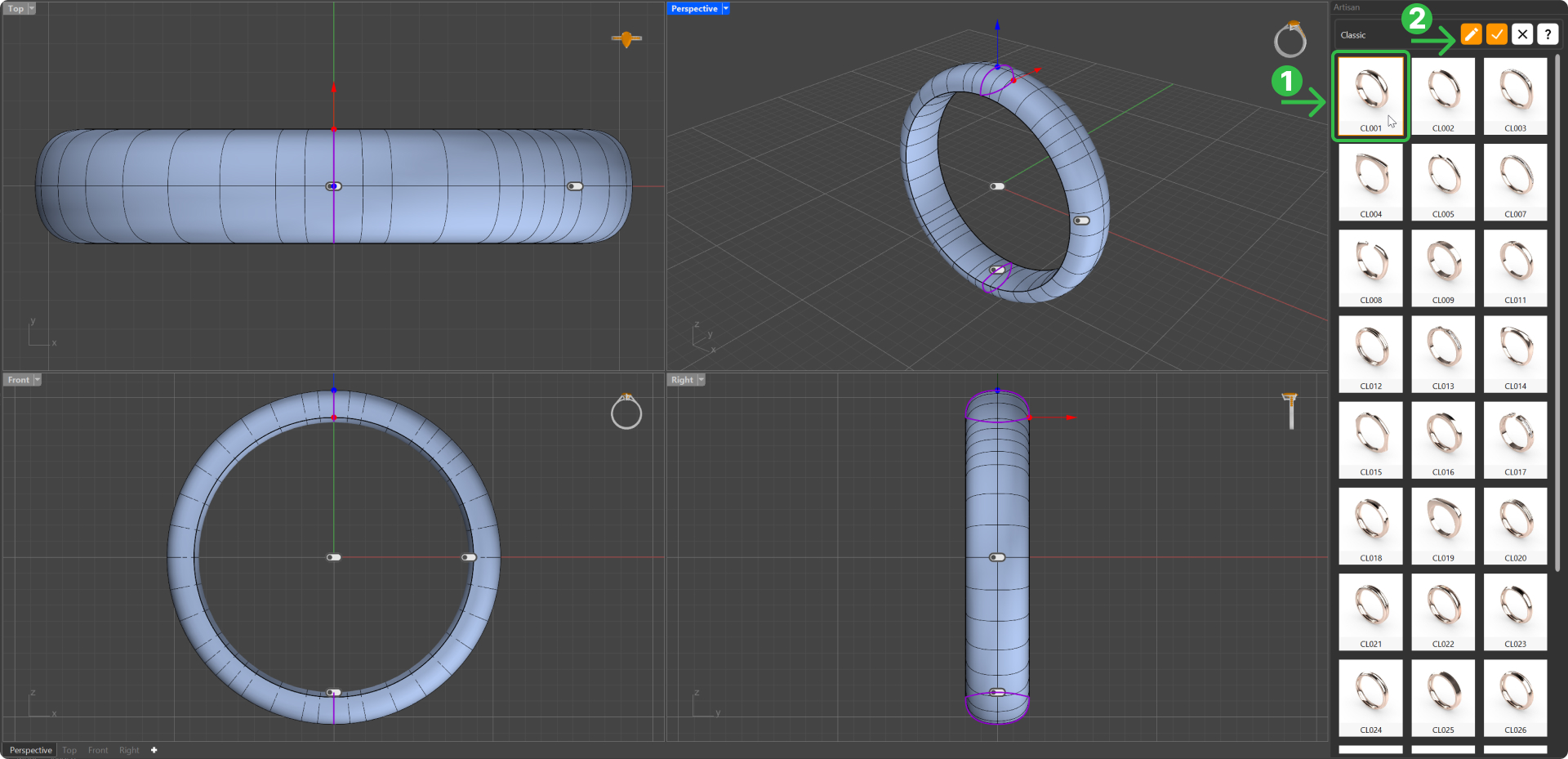

From the RhinoArtisan library, choose the model “CL001” (1), then click on Edit (2).

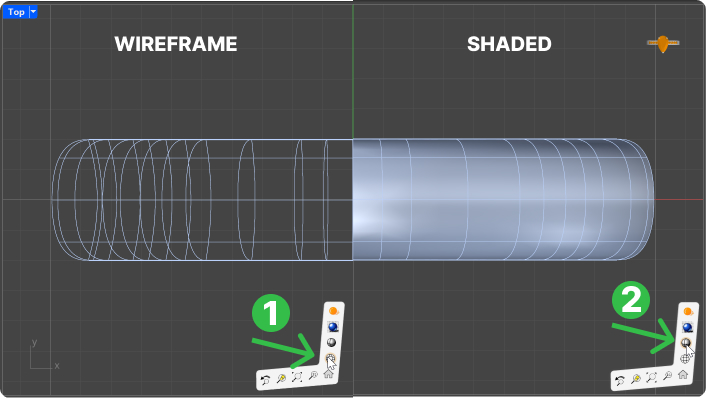

TIP: Use the shaded mode for better visualization of the model. Change it in the right corner of each viewport. (1)Wireframe - (2) Shaded
Shank Parameters

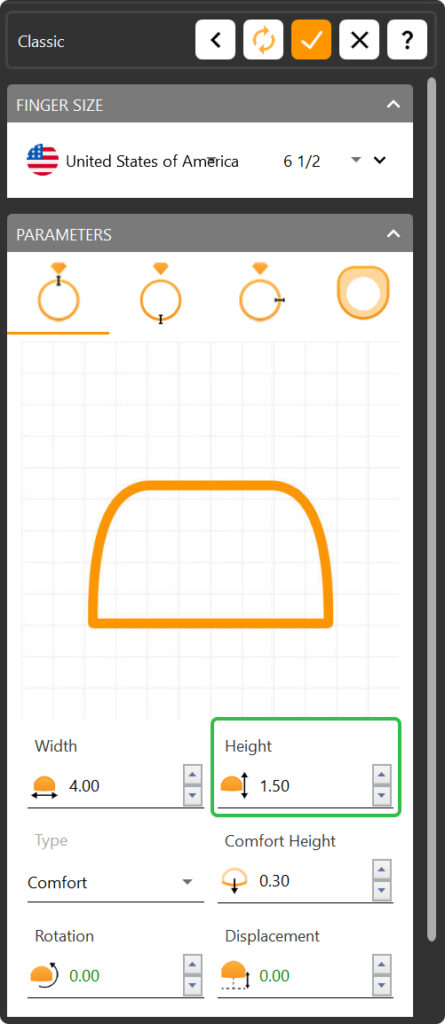

Adjust the parameters of the model by changing the Height to 1.5 millimeters.
Accept
Click “Accept” to finalize the shank design.
Video Lesson
Next Step
In the next lesson, we will create the curve socket for our gemstone.
