Importing the Earrings Design
Objective: Learn how to import a 3D earring model from RhinoArtisan into KeyShot Studio for professional rendering.
Open the Earring Model
Download the provided zip file that contains the necessary resources.
RhinoArtisan Tutorial - KeyshotStarter Resources.zip

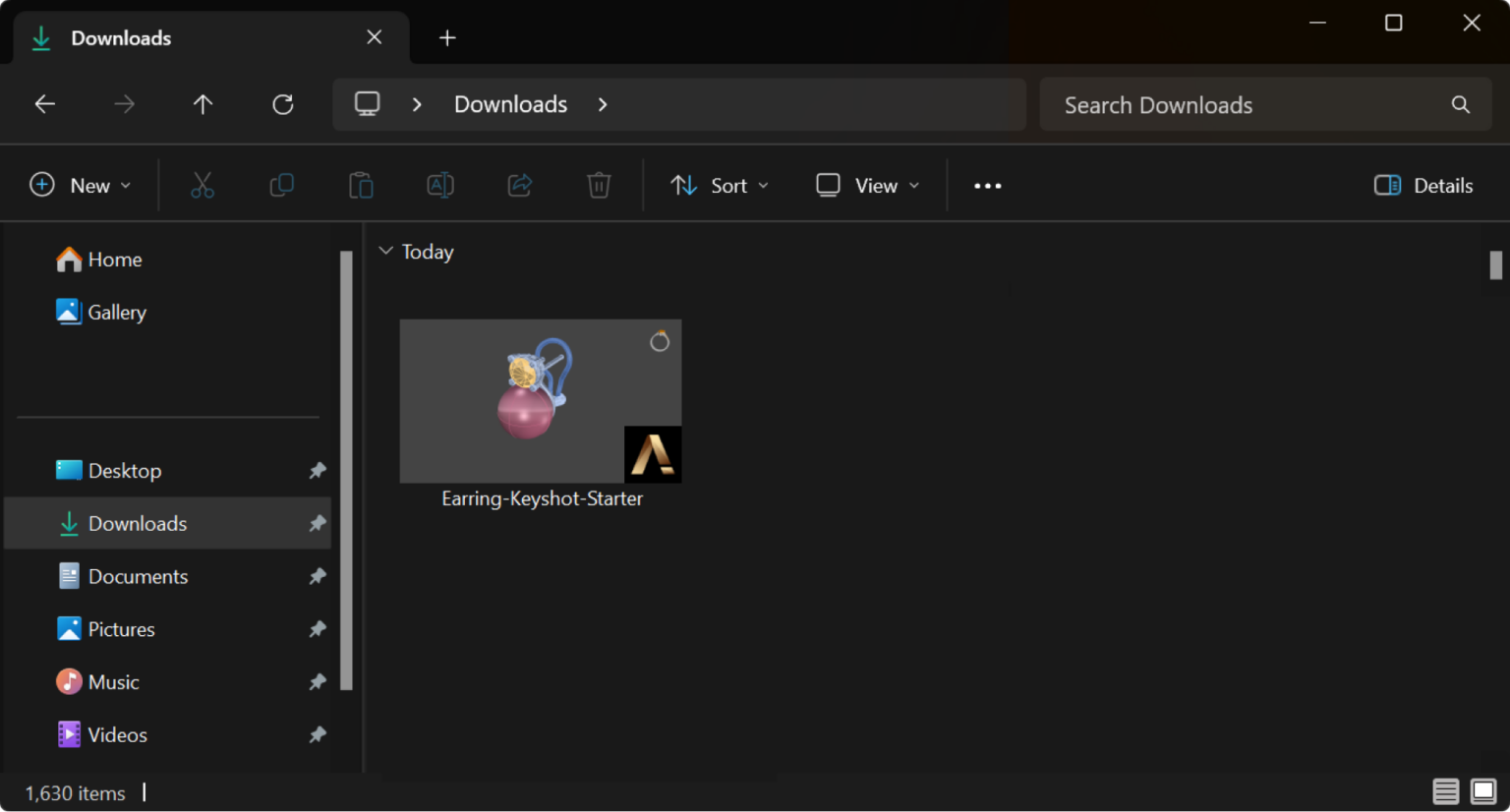

Open the model you just downloaded.
.png)

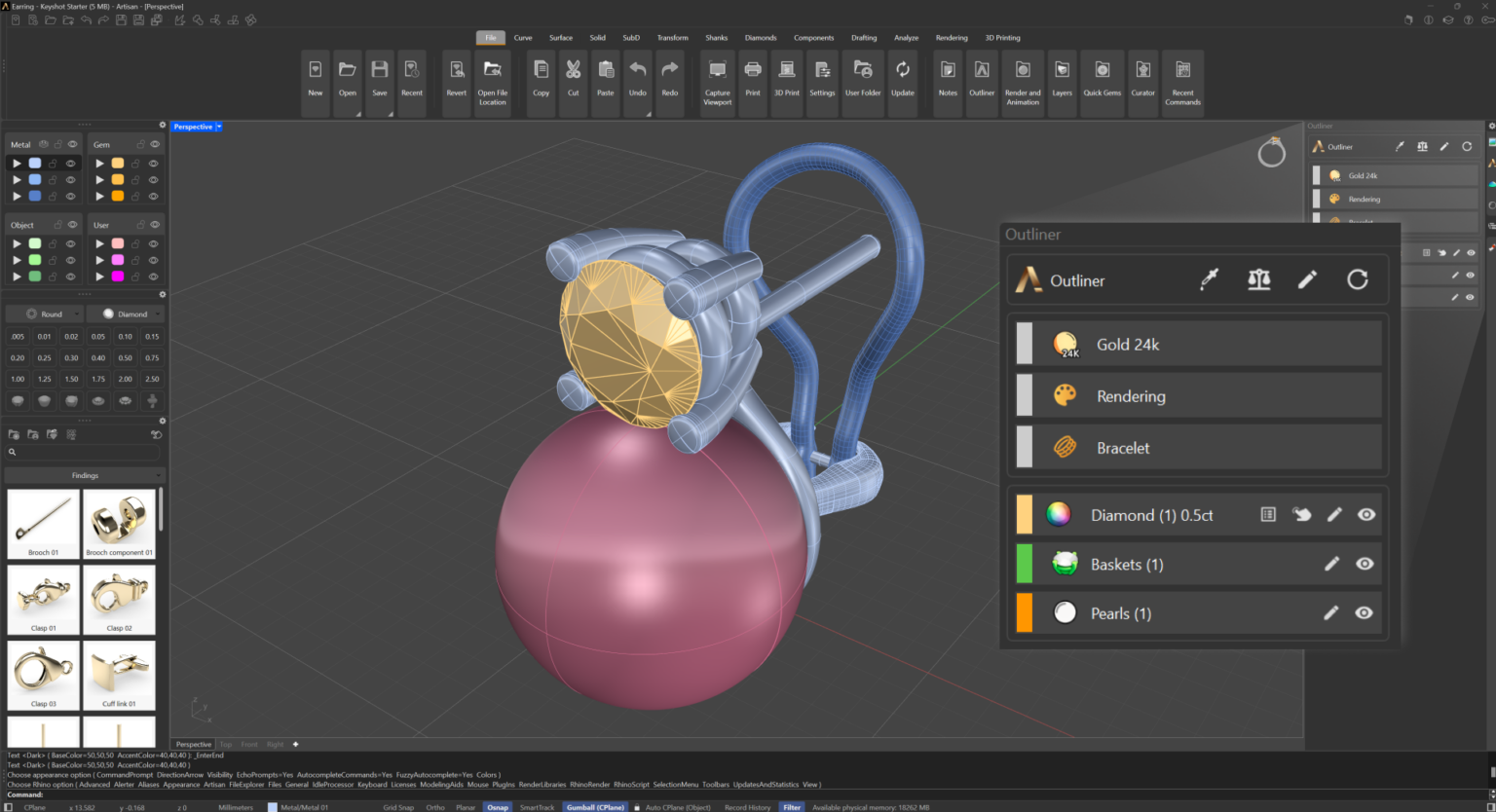

In the Outliner panel, you will see:
- A 0.50 ct diamond set in a basket.
- A 10 mm pearl supported by a metal base with an omega clip system, including the heel, post, and the omega itself.
.png)

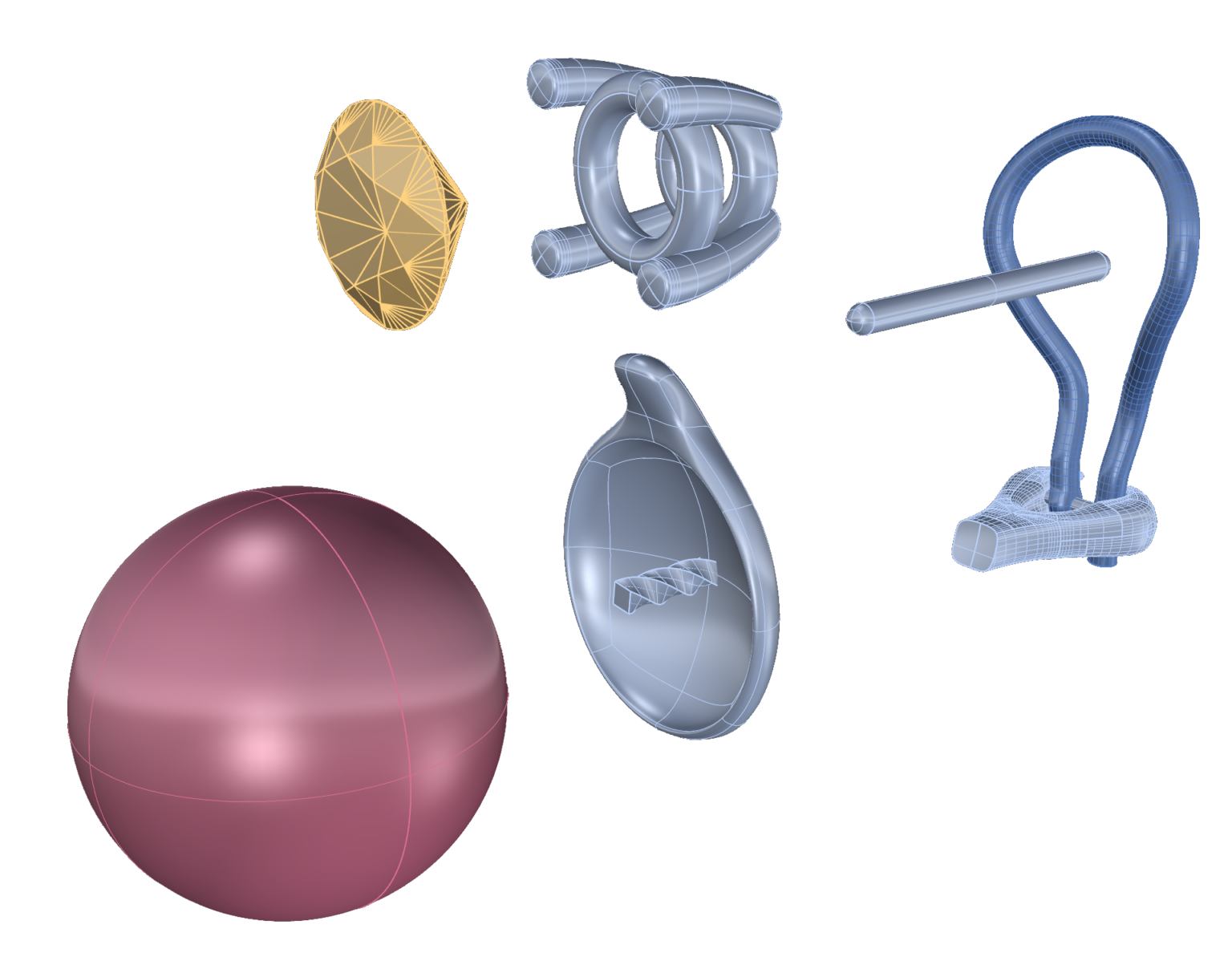

Layer Organization
Different parts of the earring model are on separate layers:
- Pearl: Pink color in the viewport.
- Diamond: Orange color in the viewport.
- Metal: Includes the base and omega clip, which appear in a darker shade.
.png)
Exporting to KeyShot Studio

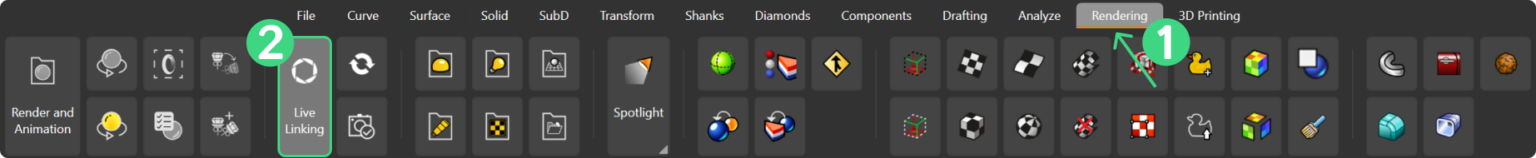

- Navigate to the Render tab in RhinoArtisan and click the Live Linking button (KeyShot icon).
.png)

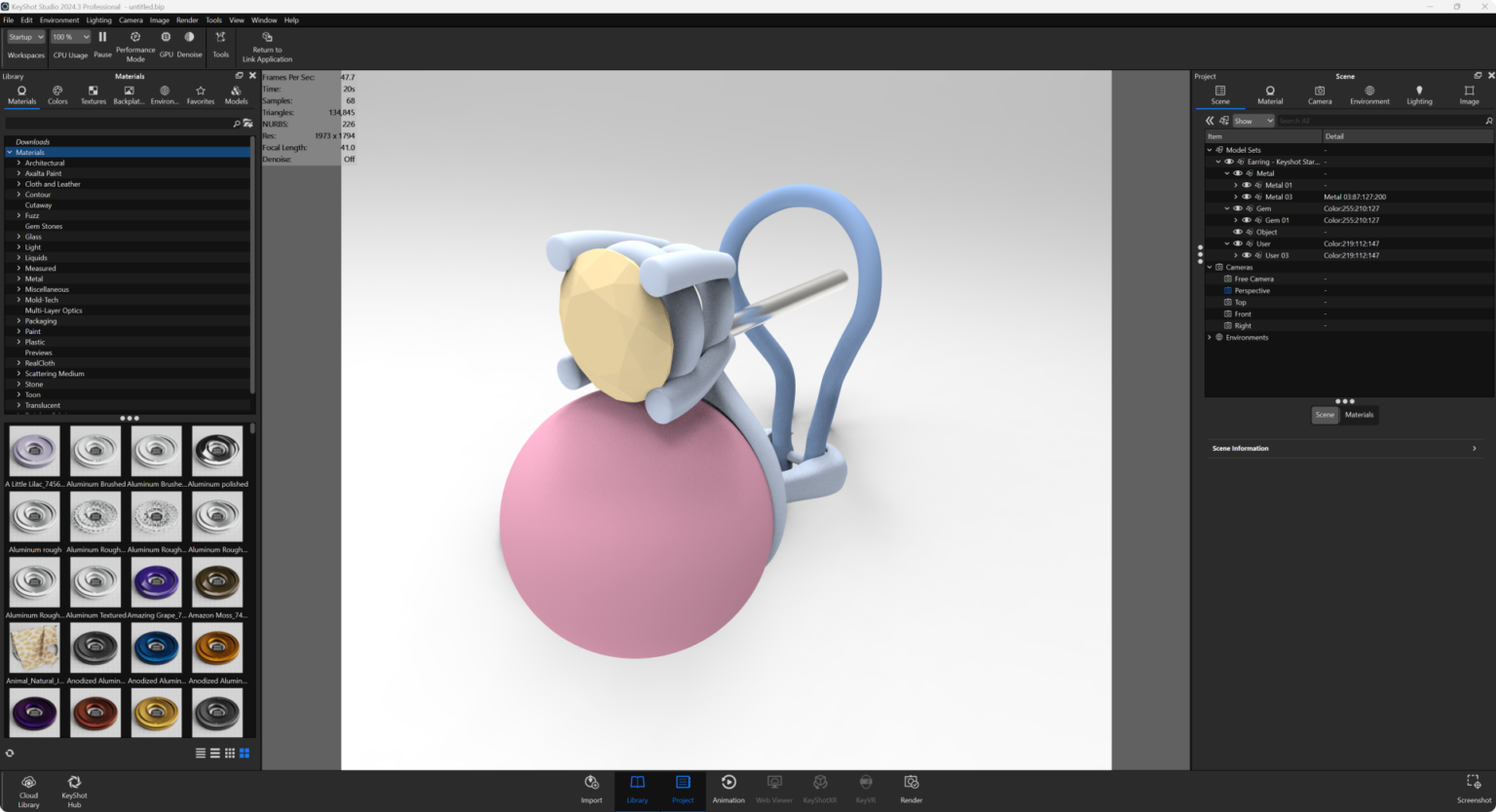

- KeyShot Studio will open and import all visible elements in the viewport. Hidden elements in RhinoArtisan will not be imported.
.png)
Next Lesson: Create the Pair Earring and Updating the Scene
